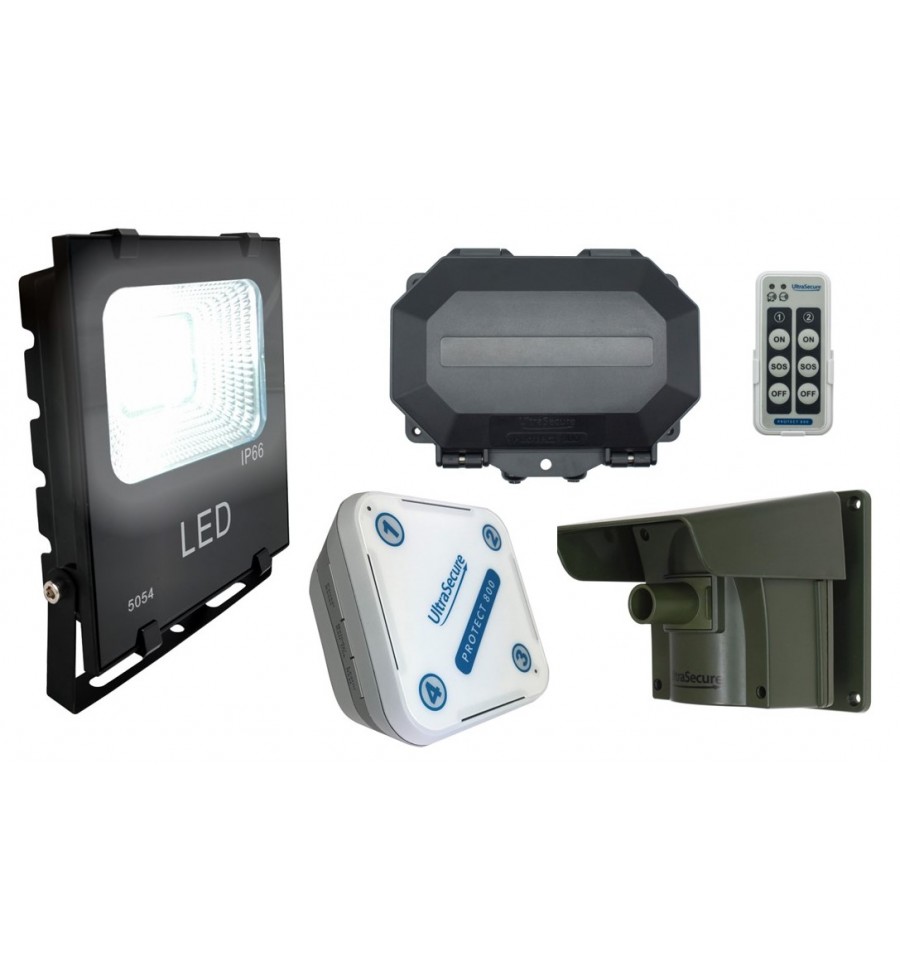

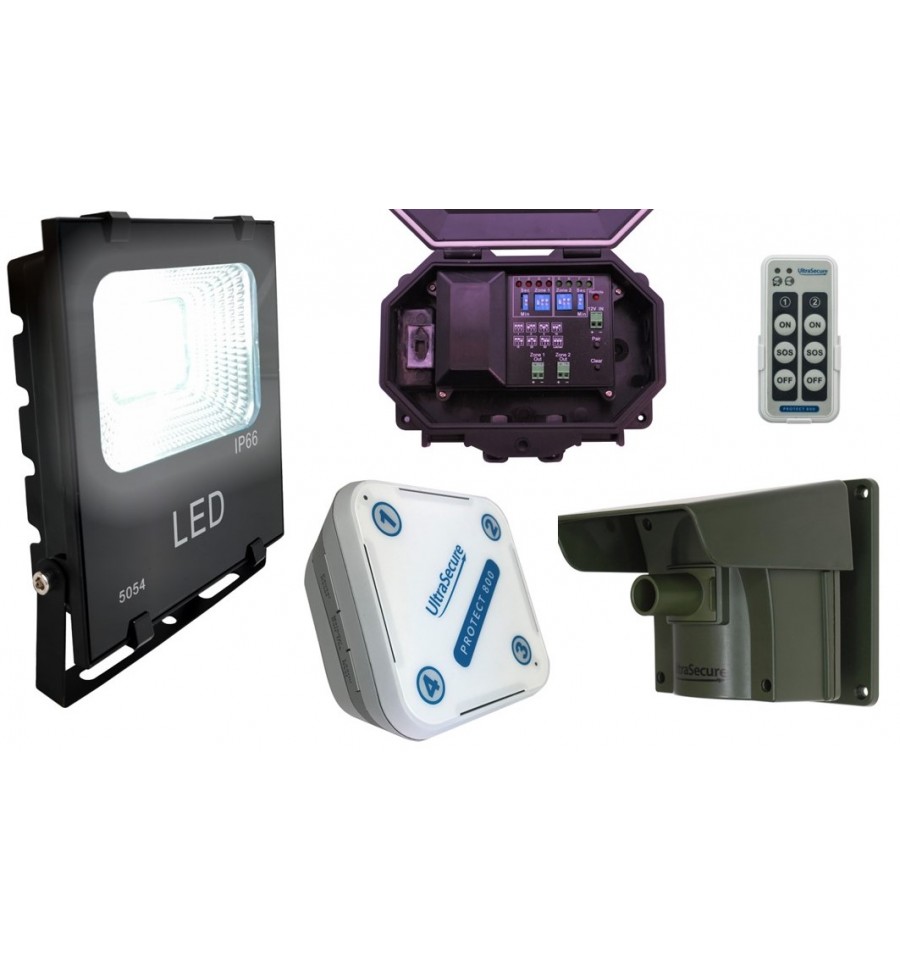

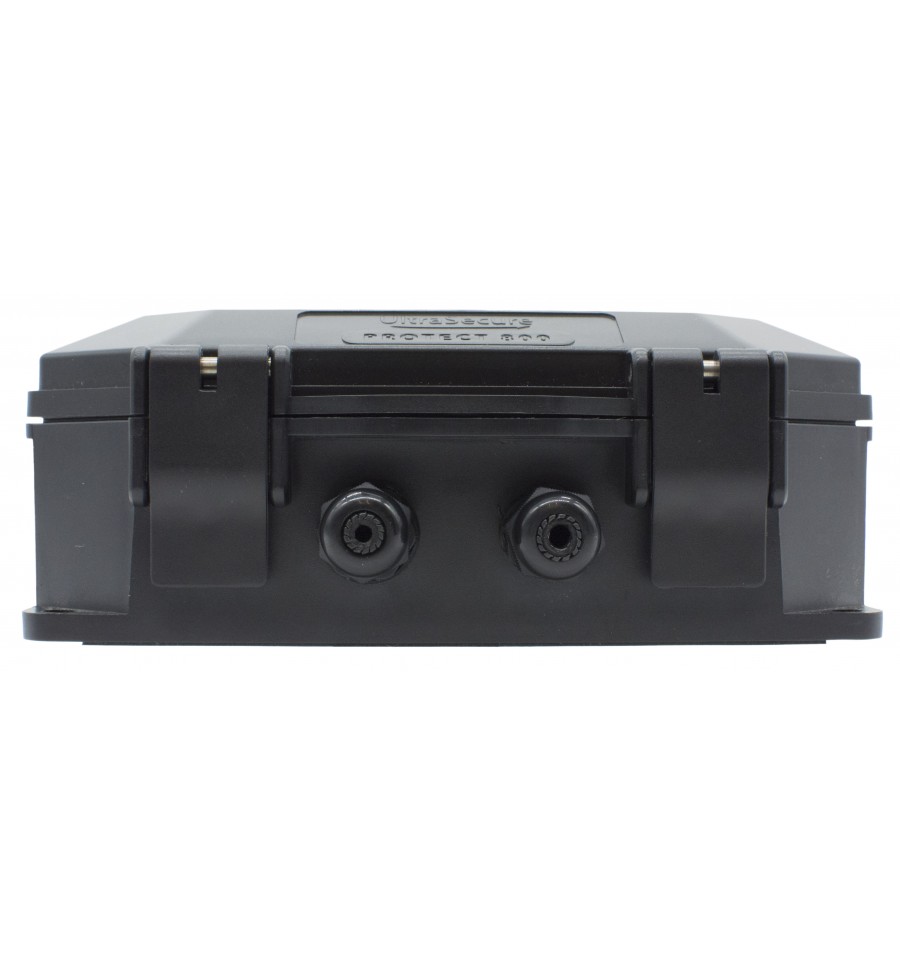

Floodlight Long Range Driveway PIR Alarm with Outdoor & Indoor Receiver

Duration:

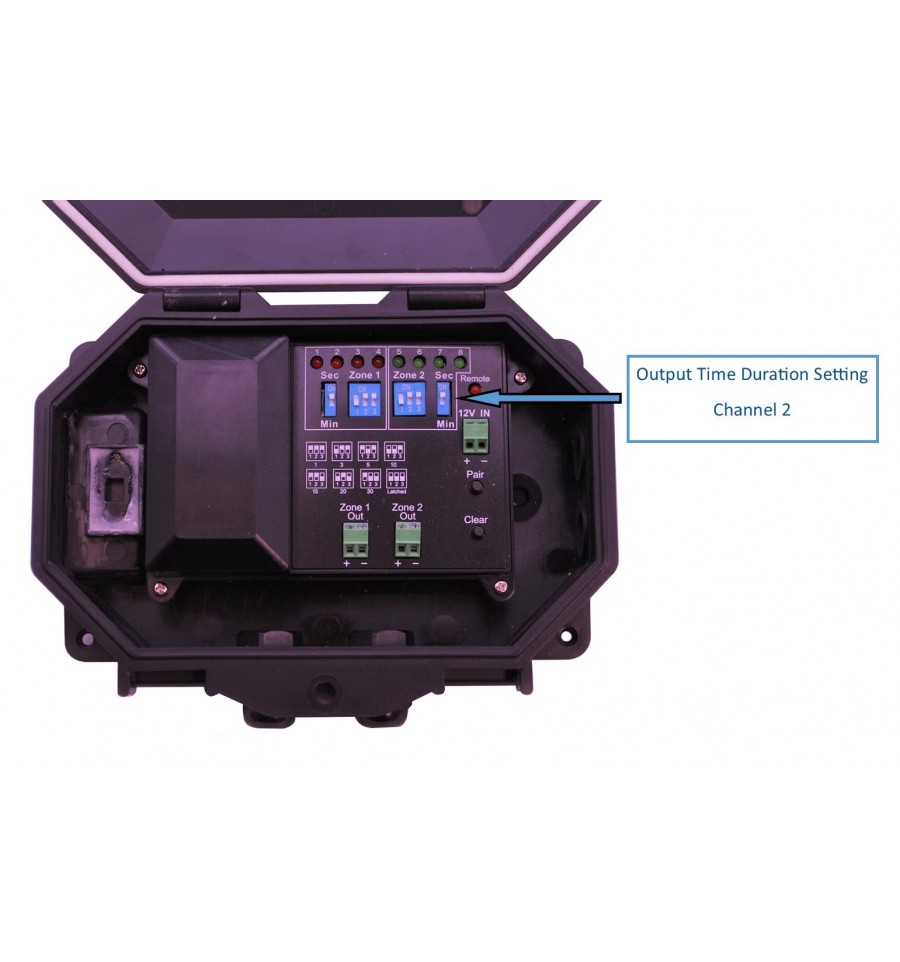

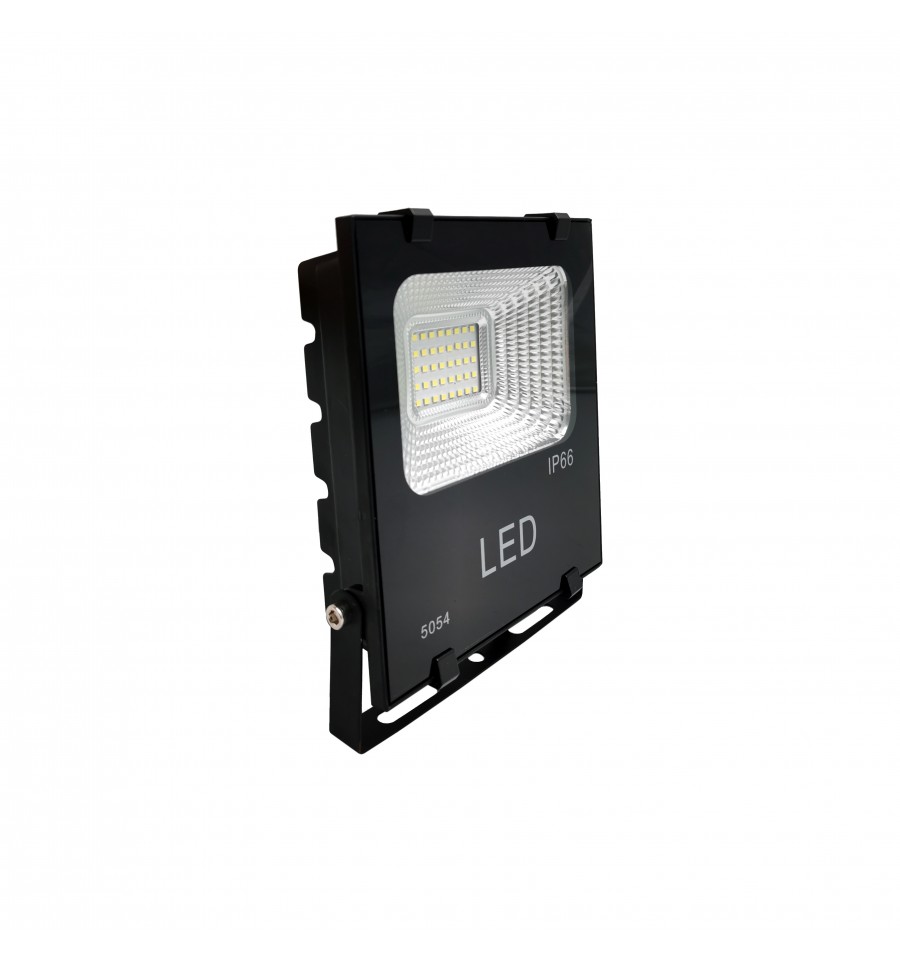

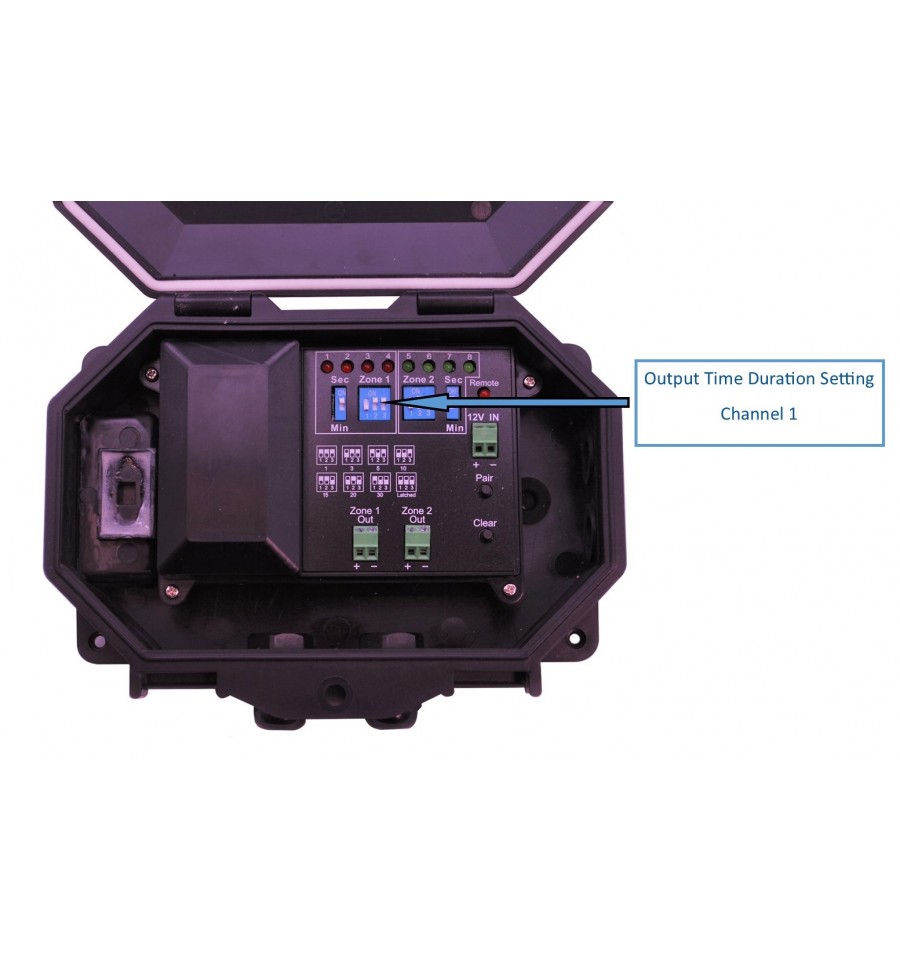

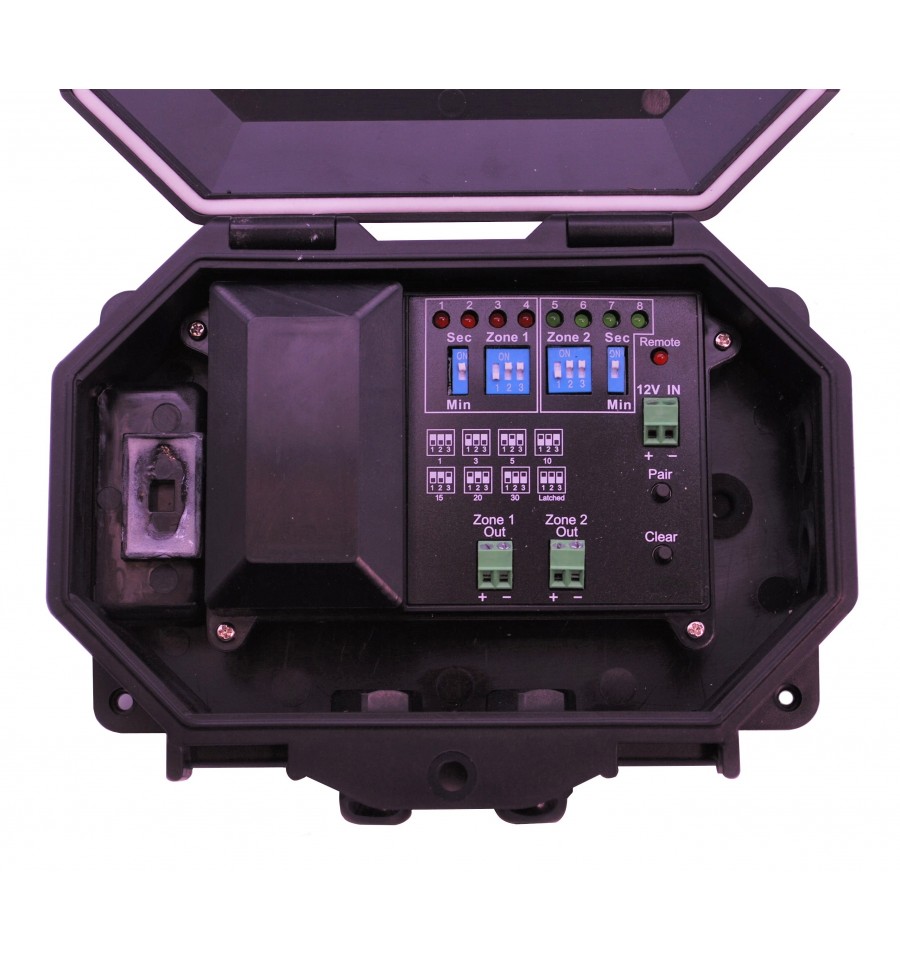

The duration of the Floodlight is fully adjustable (by selecting combinations of the internal dip-switches) from 1 seconds to Latched ON, the full list is as below:

• 1 second or minute.
• 3 seconds or minutes.
• 10 seconds or minutes.
• 15 seconds or minutes.
• 20 seconds or minutes.
• 30 seconds or minutes.
• Latched ON (until disarmed using the remote control).

• PIR's (004-4100).
• Vehicle Probes (004-4400).
• MT Transmitter (006-3100).
• Gate Contact & Transmitters (004-4300).
• PIR in a Bird Box (004-4240).
• Transmitter Board (006-31100).

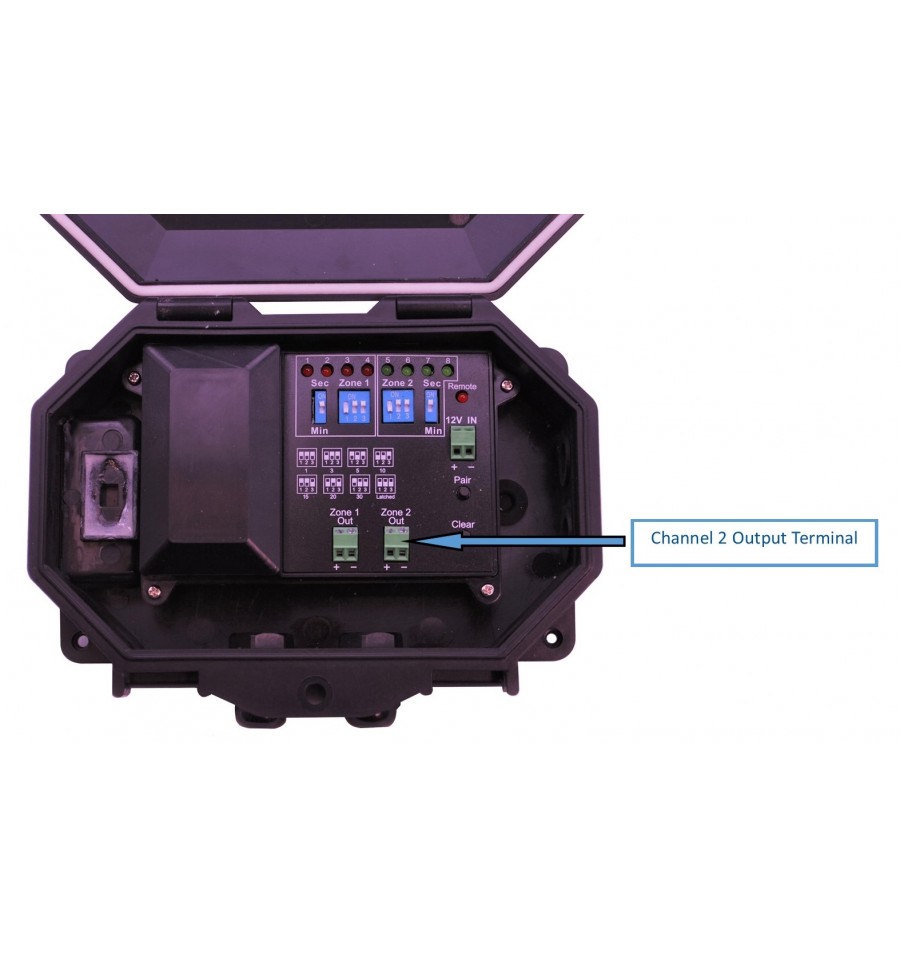

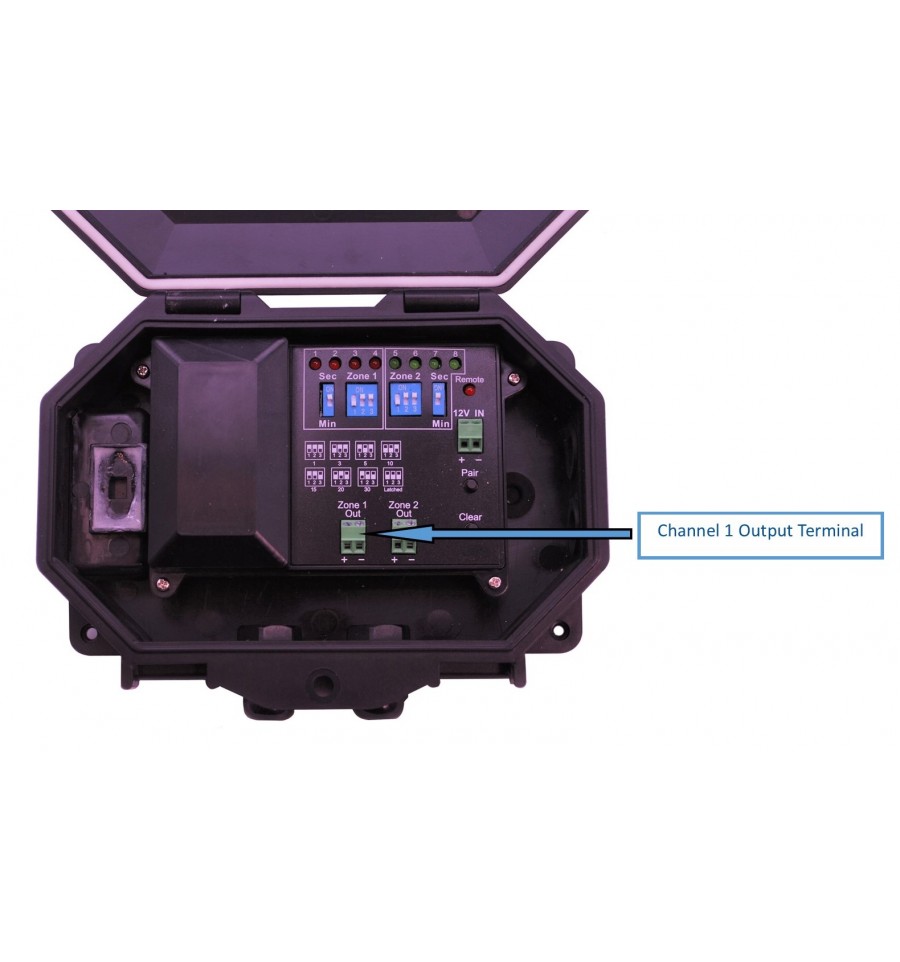

So it is possible to add additional 12v devices to Channel 1 or 2 and set the duration for a different time for each channel, examples of use could be:

• The loud Siren for 20 seconds when triggered (when armed).

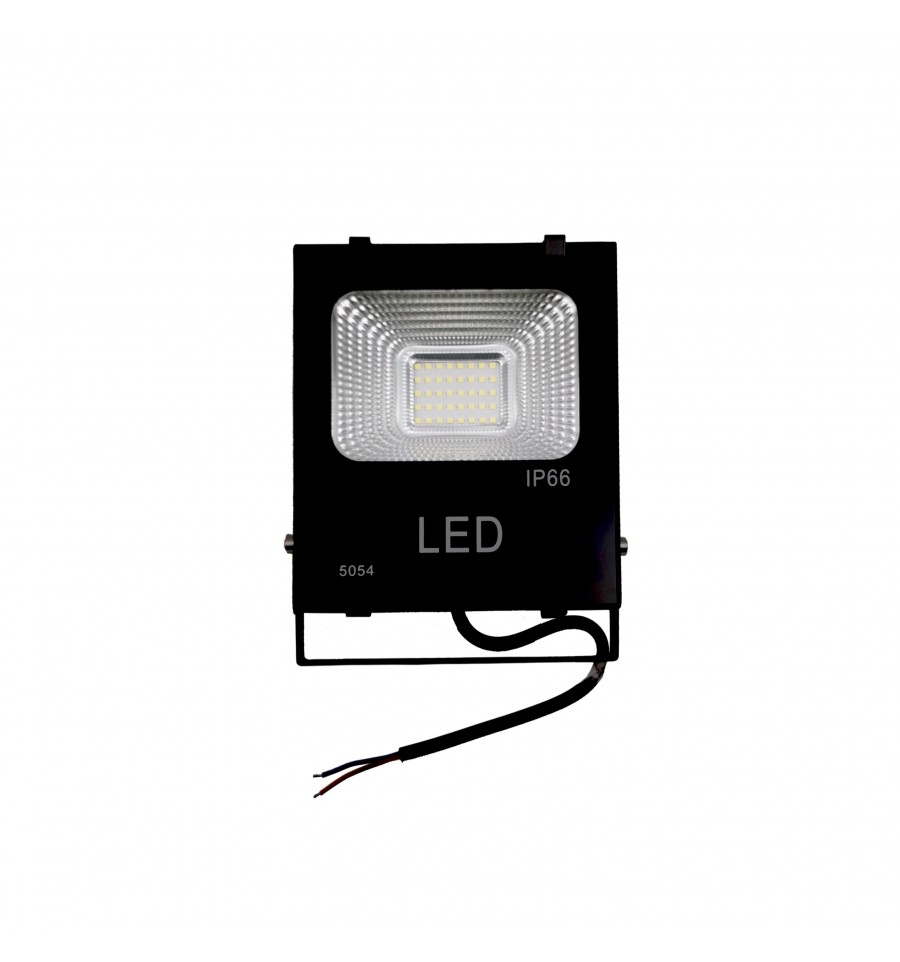

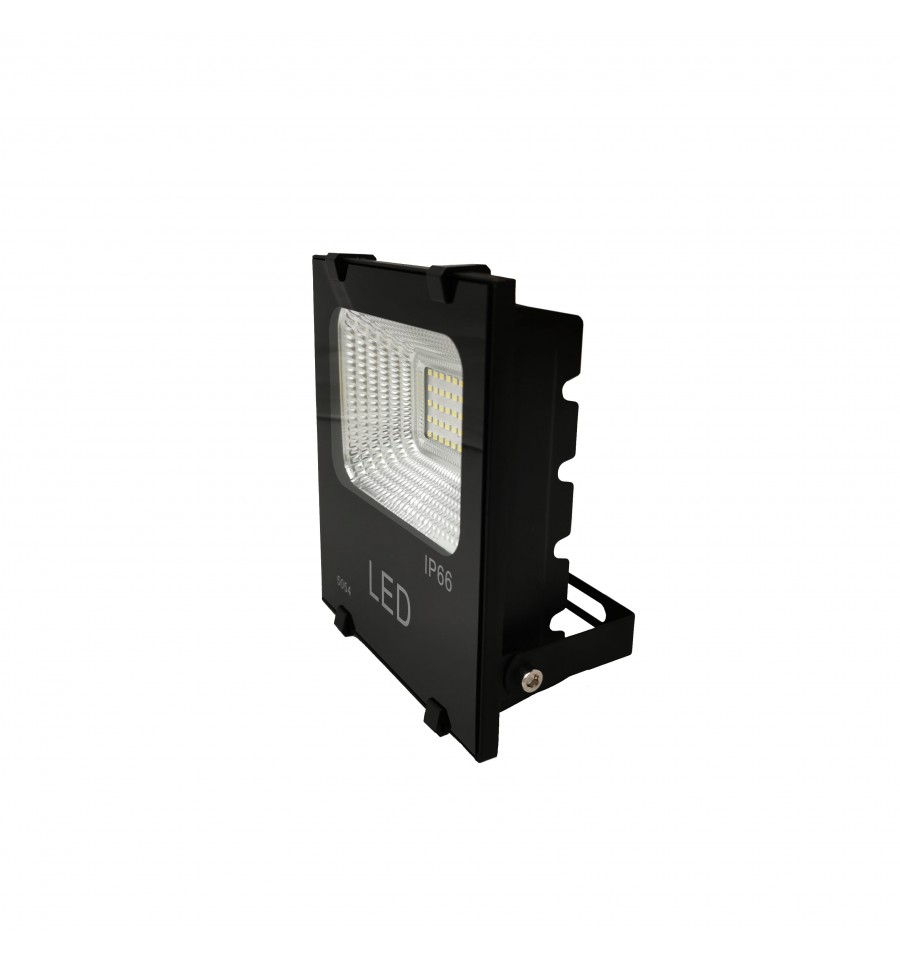

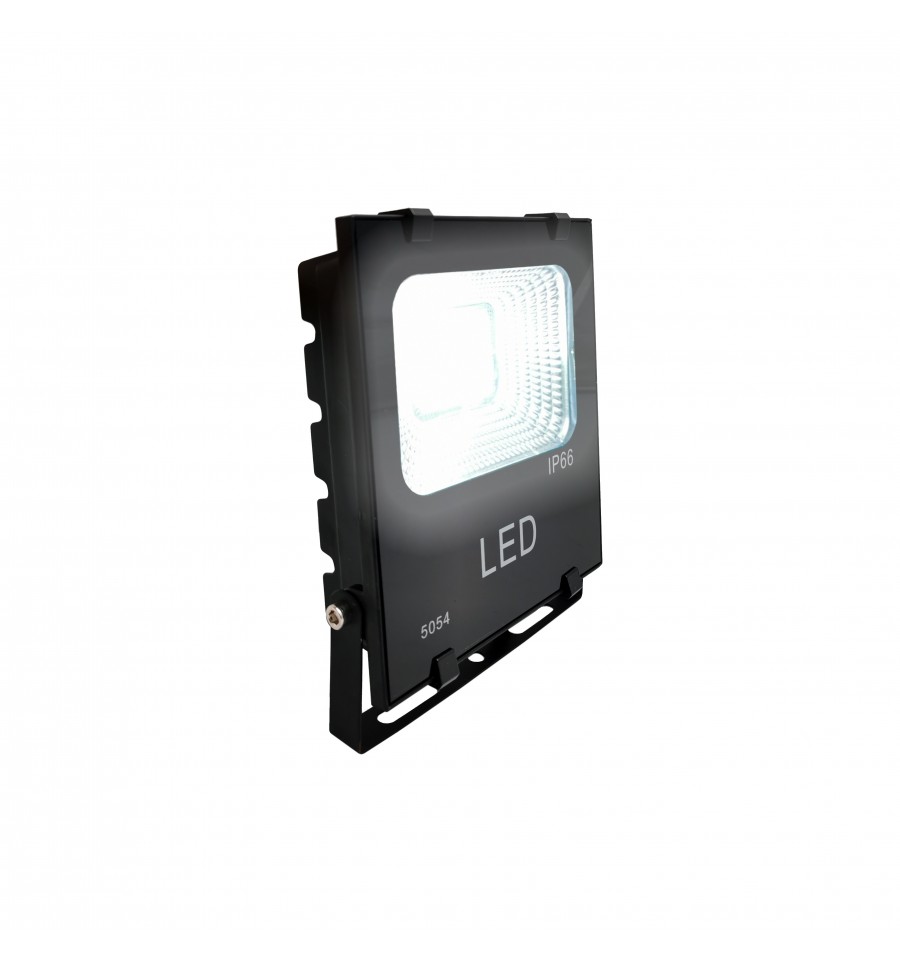

• A bright 12v DC Floodlight for 10 minutes when triggered (when armed).

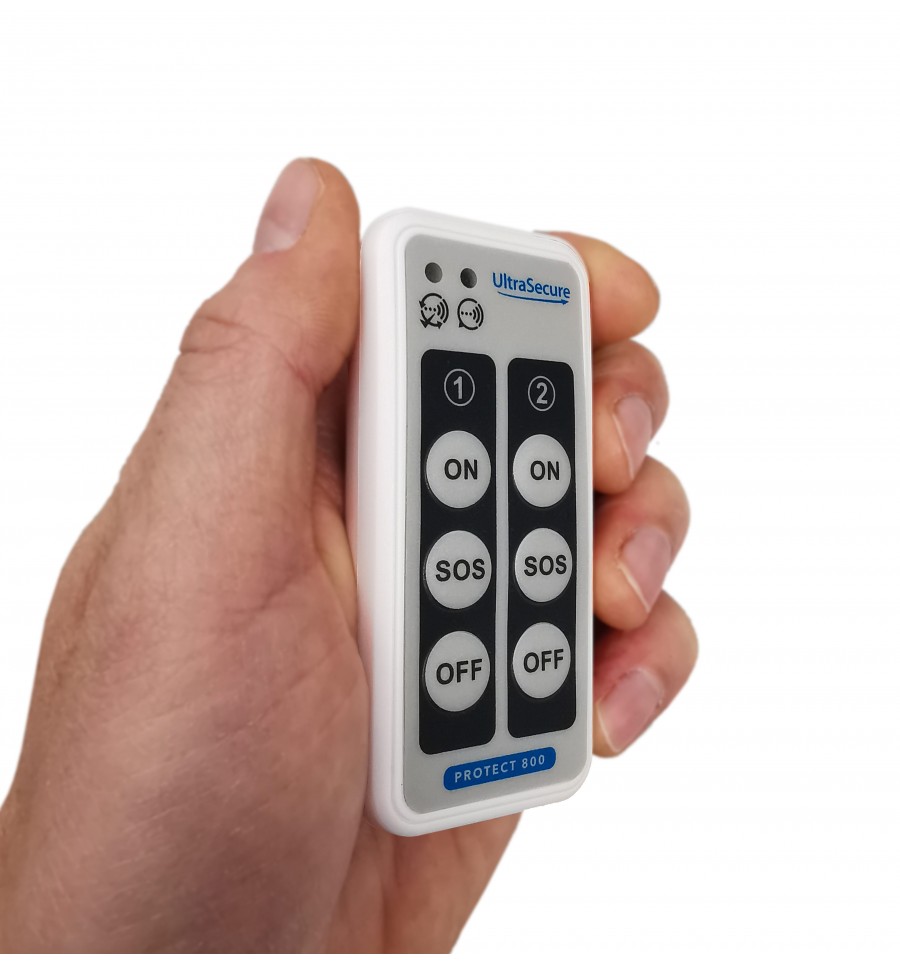

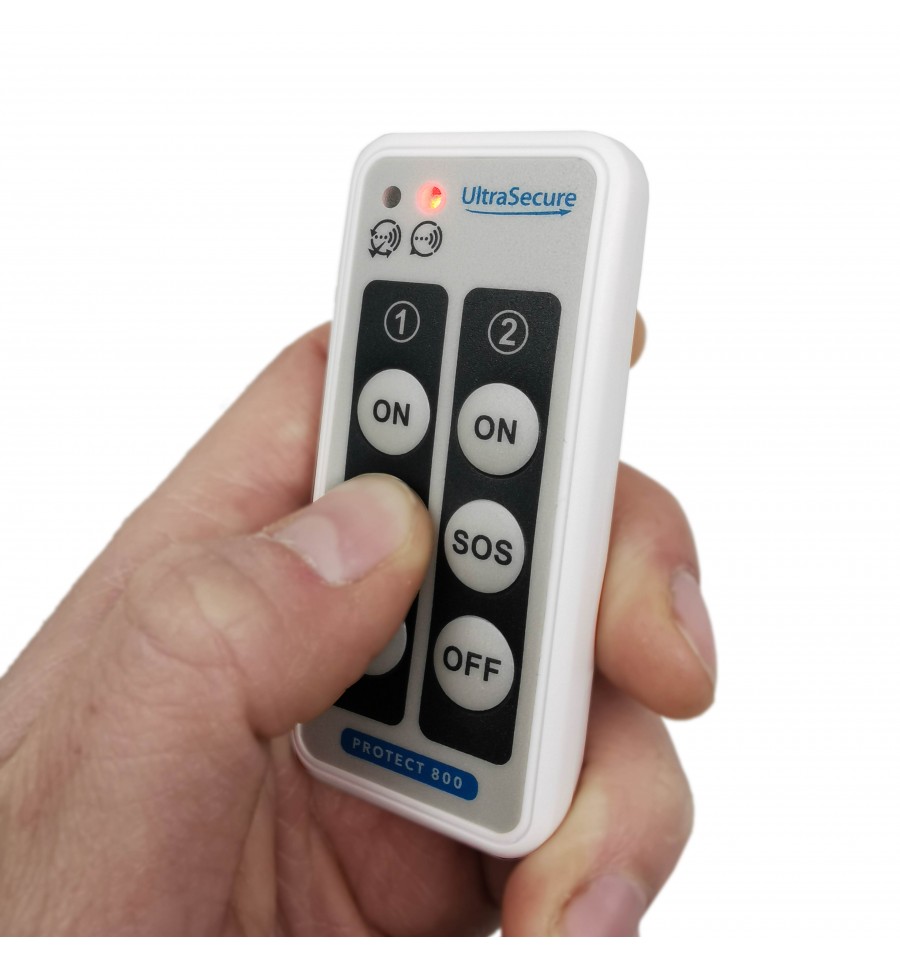

Remote Control:

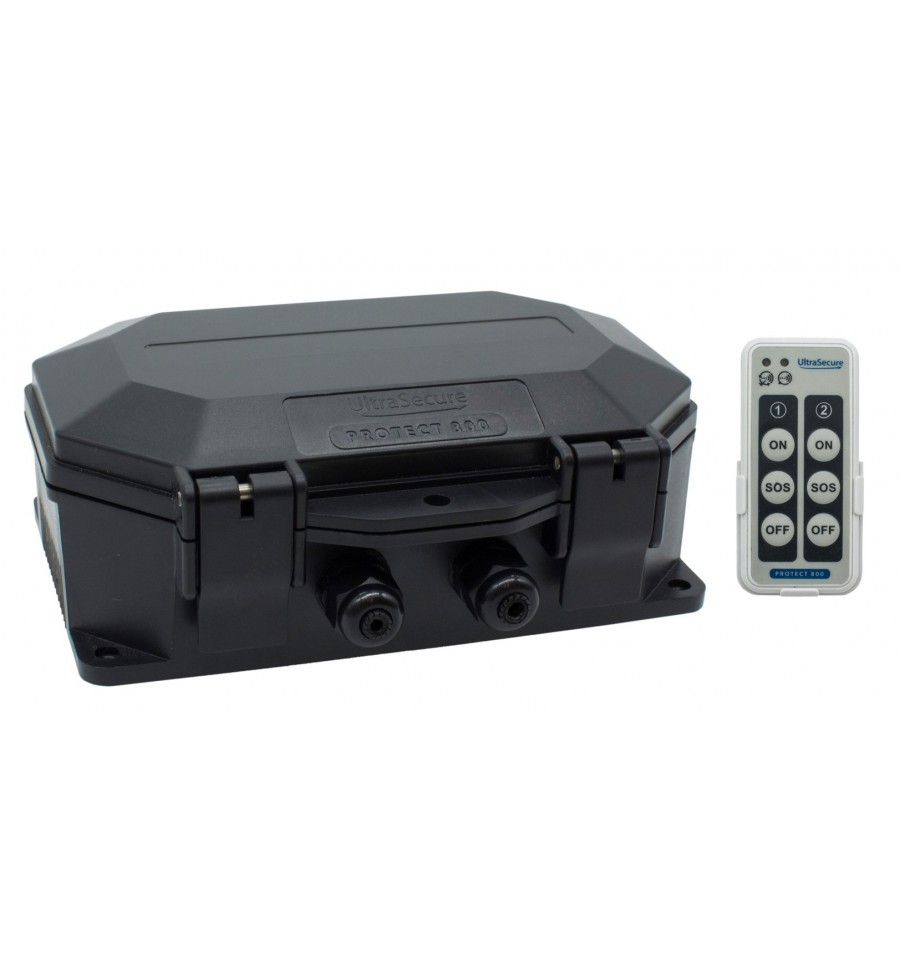

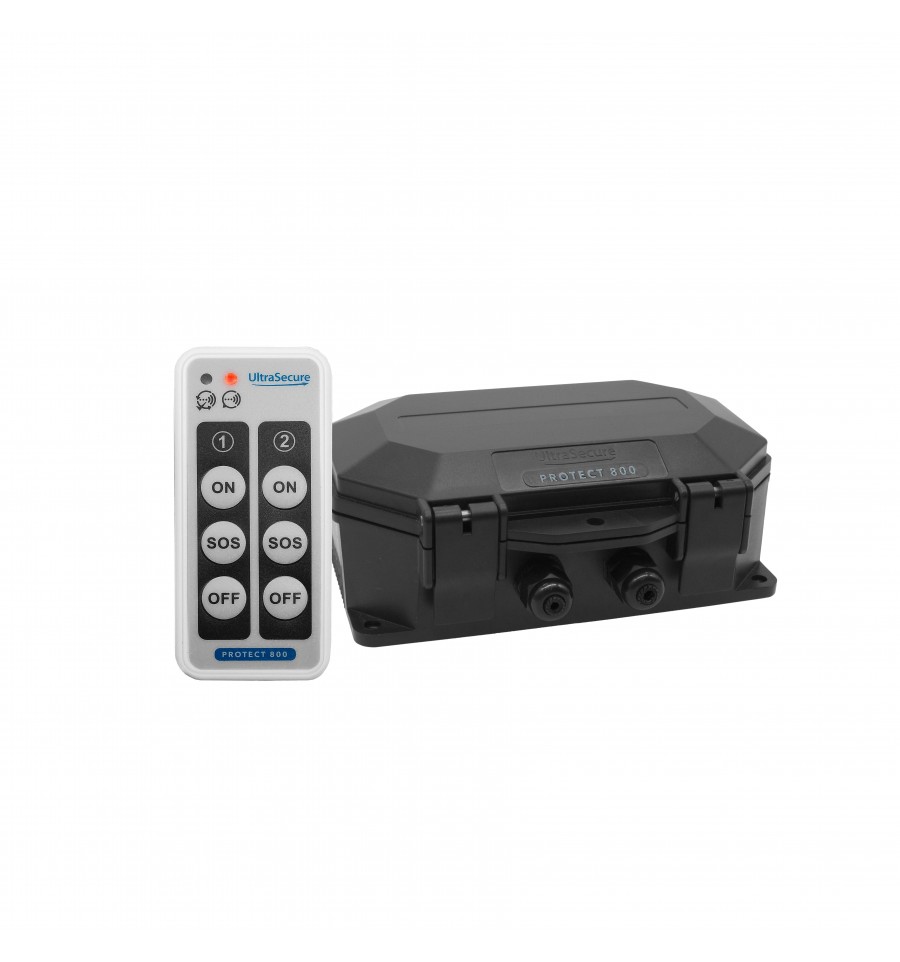

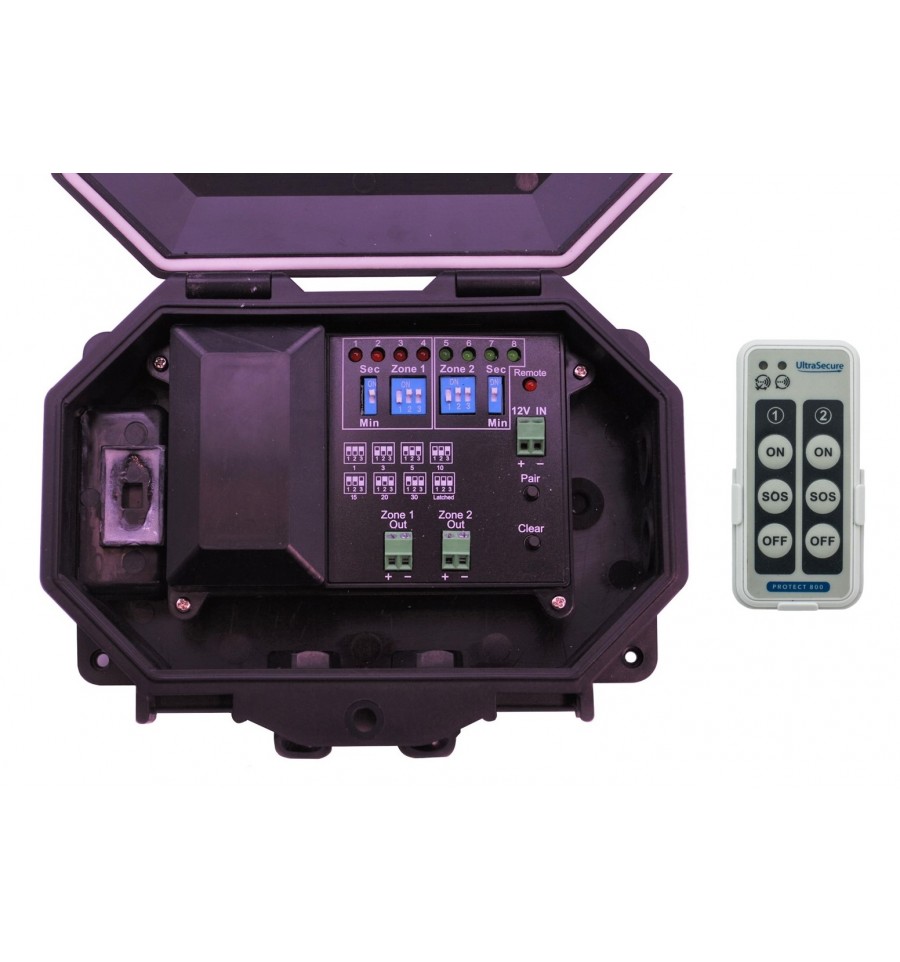

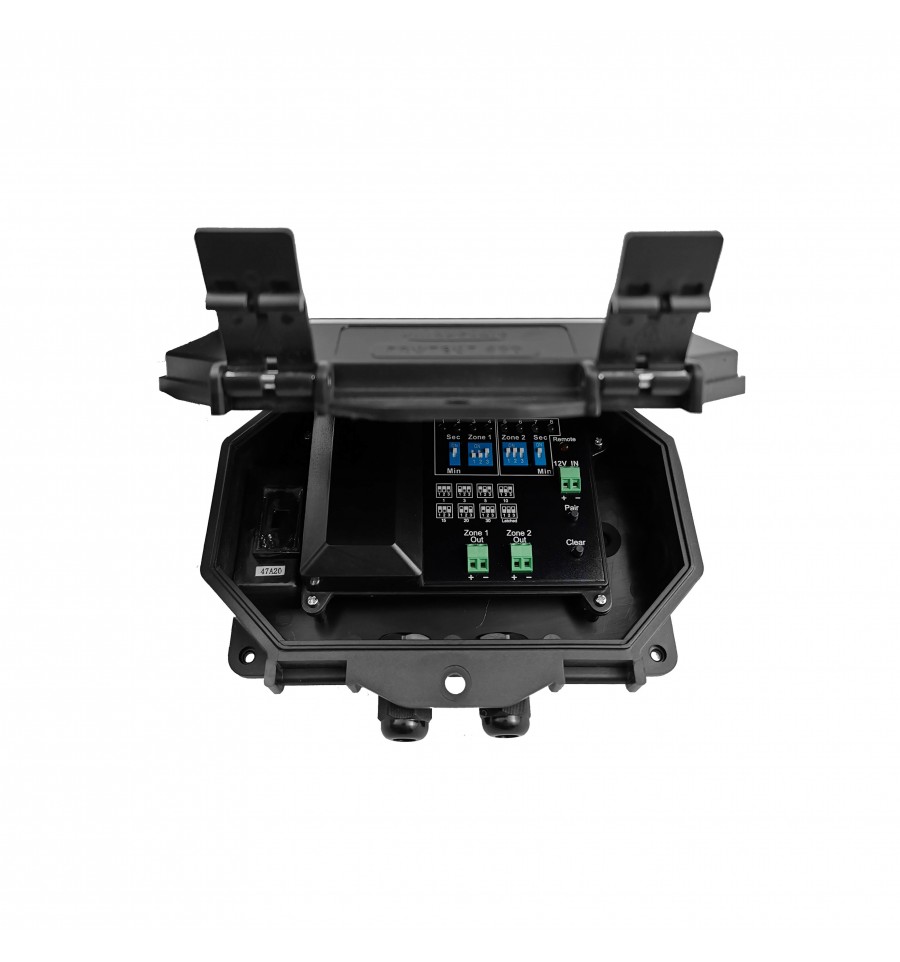

The specially designed remote control supplied with this Outdoor Receiver has the following features:

• Arm & Disarm either channel on the Outdoor Receiver.
• Trigger a optional SOS button which would activate the connected accessories (regardless of if the receiver is disarmed) which could be a Siren, Buzzer, Floodlight or any 12v DC device. This device would latch on until the OFF Button is pressed on any Remote Control paired to the Receiver.

The Remote Control has an intelligent Feedback LED Indicator which confirms that the signal you have sent to the Outdoor Receiver is successful.

Additional Remote Controls can be added (there is no limit).

The operating distance between the Remote Control & Outdoor Receiver is 800 metres (line of sight) which relates to around 400 - 600 metres in most applications. This allows you to Disarm the Receiver before passing through a Protect 800 Detector, or Arming the Receiver after leaving the premises.

Powered by two standard AAA Batteries (supplied).

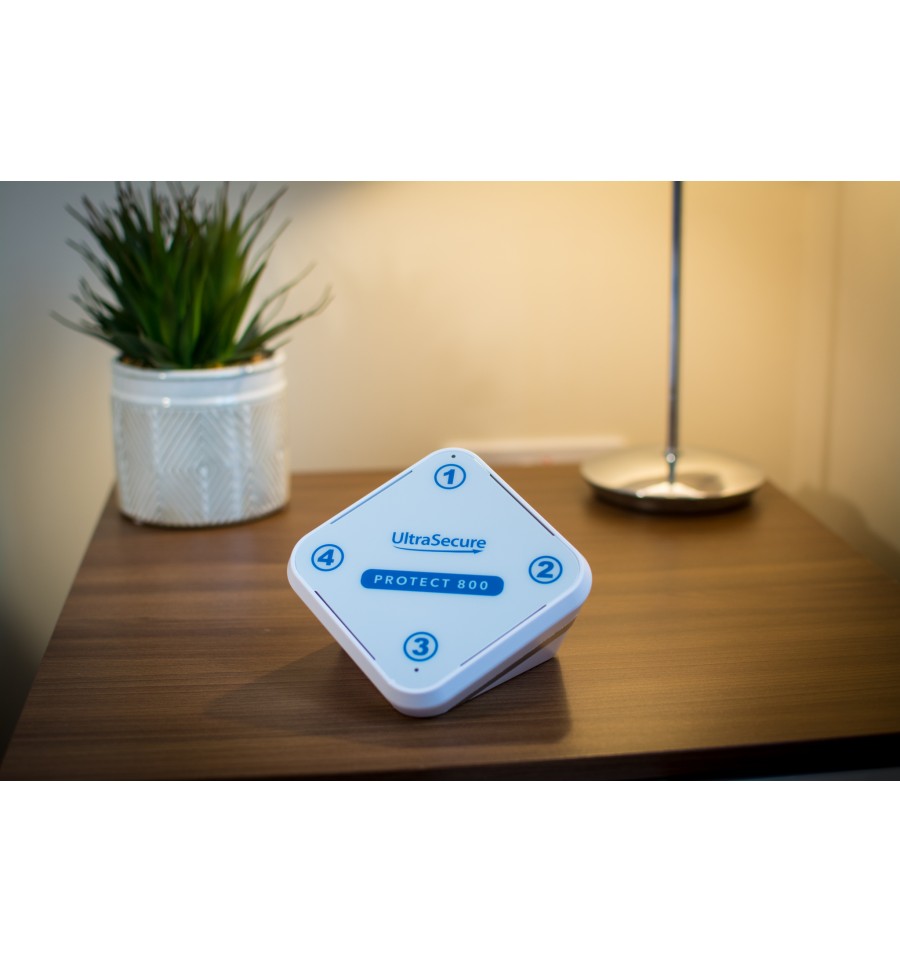

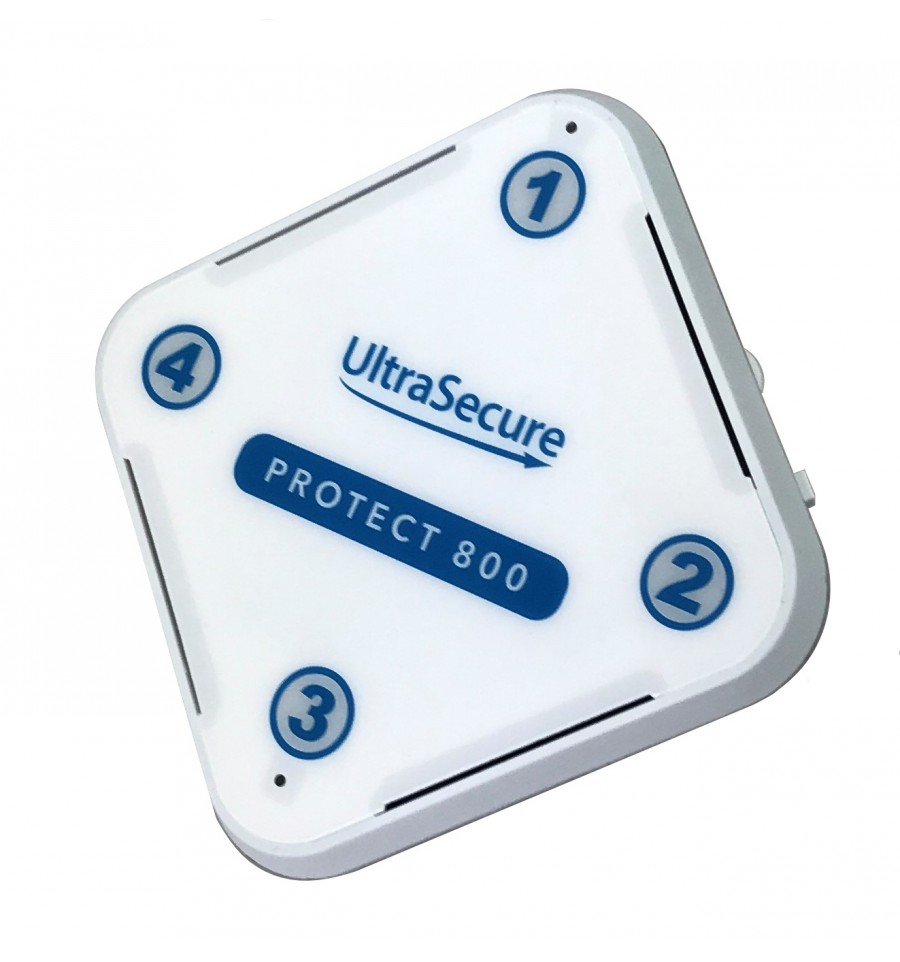

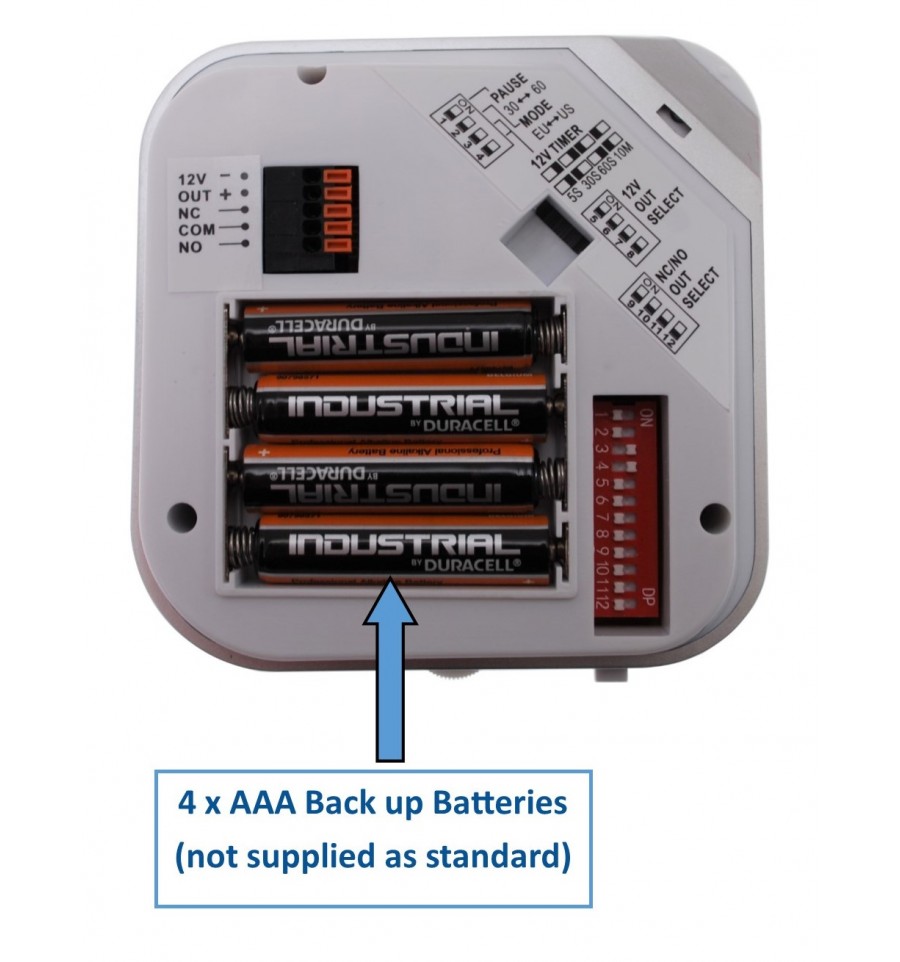

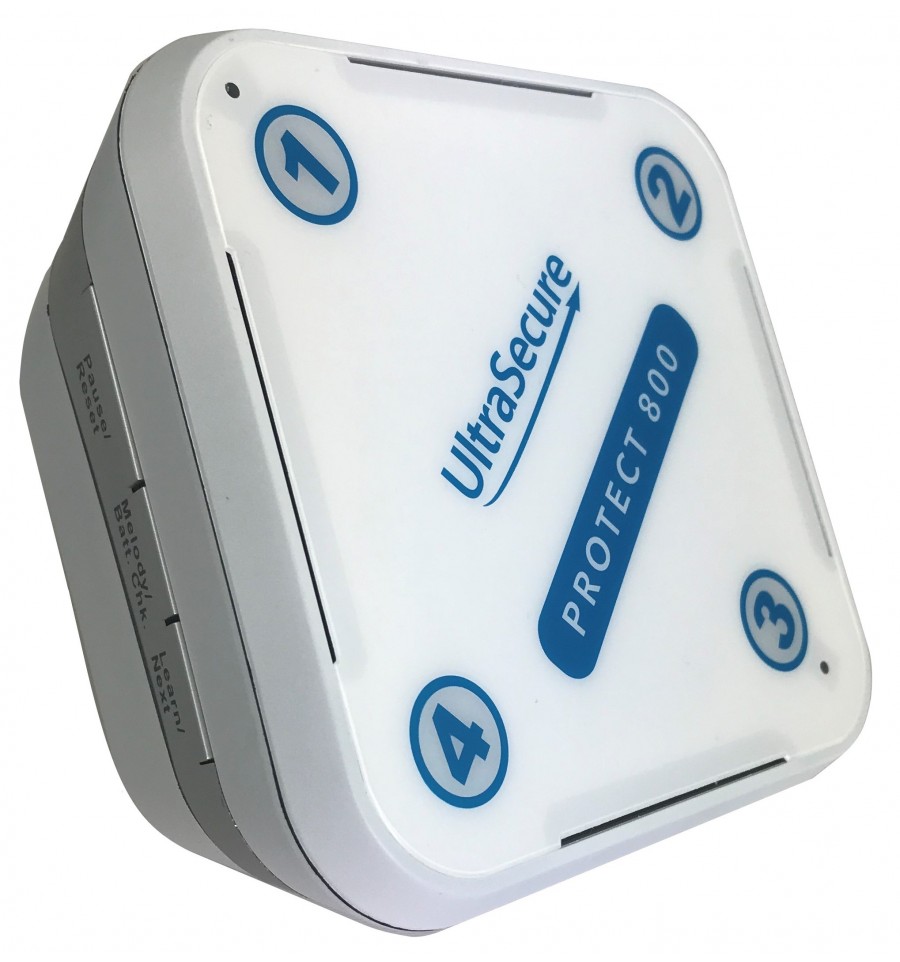

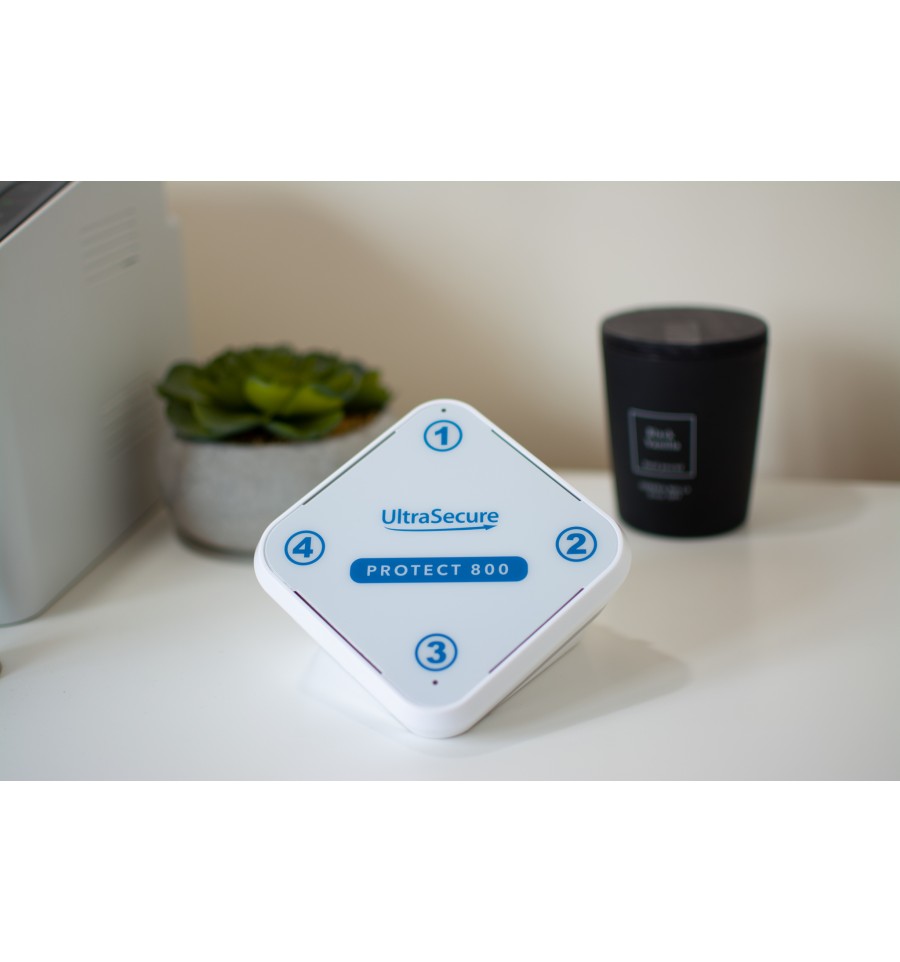

Indoor Receiver:

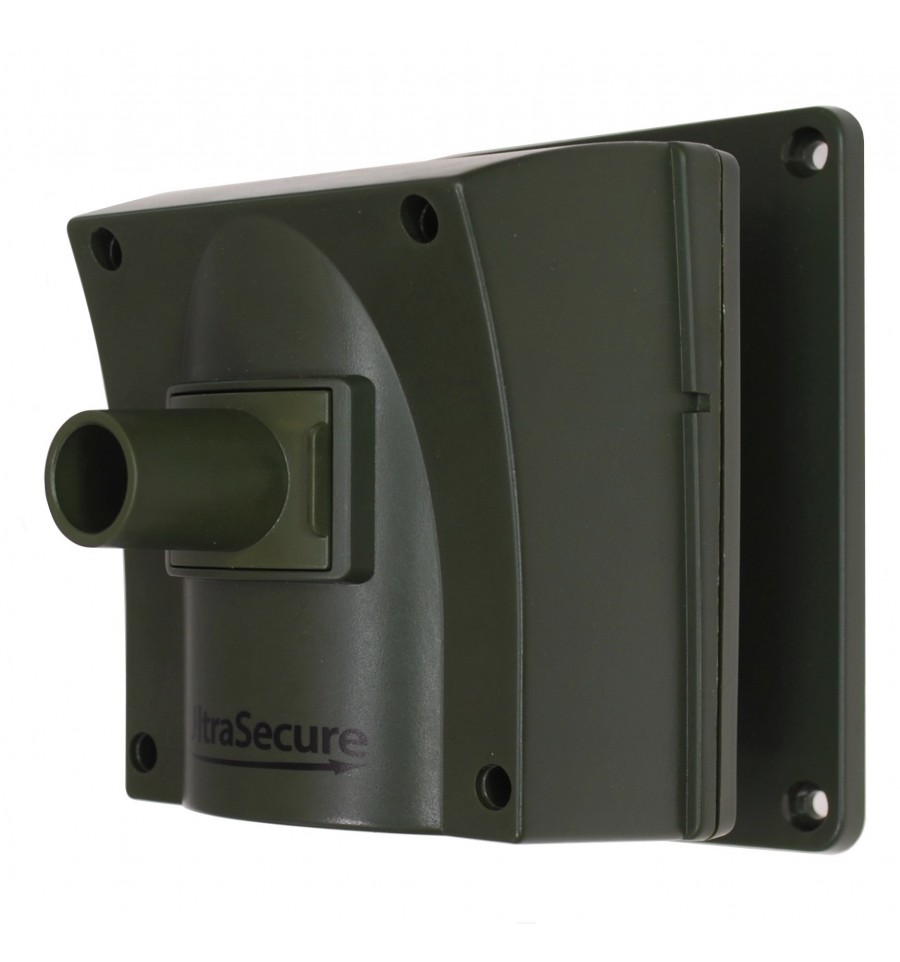

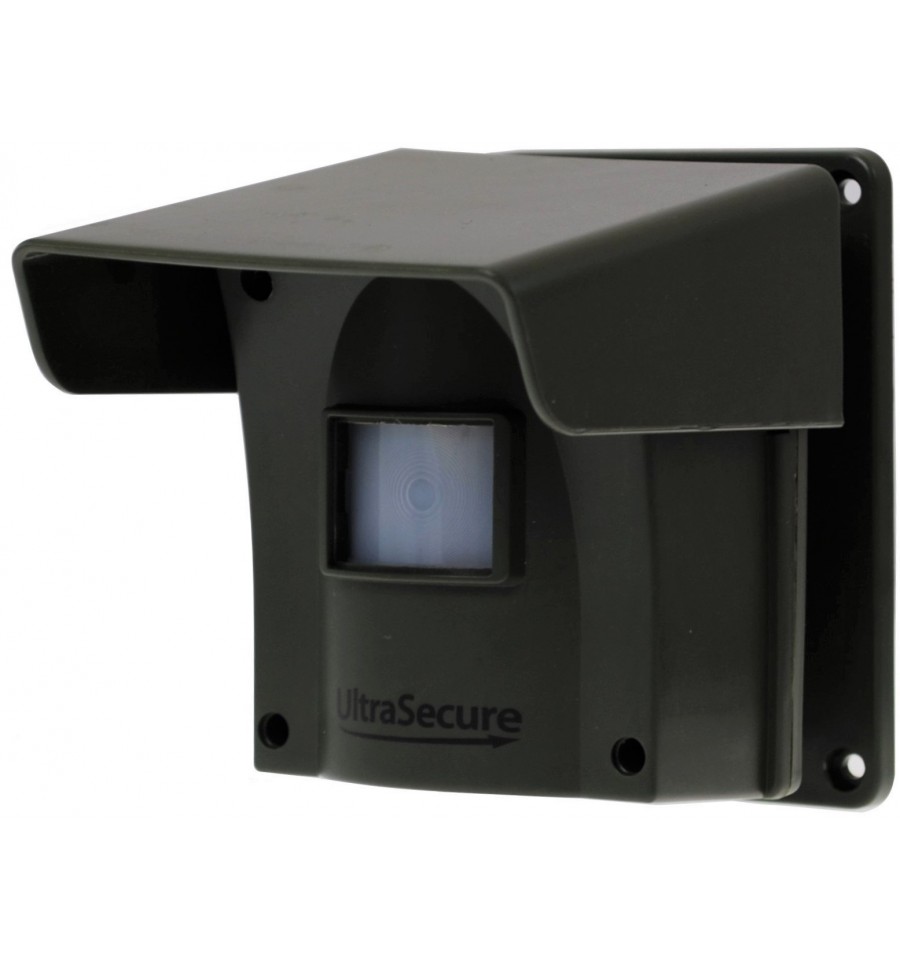

PIR:

Additional Battery Powered Wireless PIR for the Protect 800 Wireless Driveway Alert System, packed full of features including:

• Impressive 2400 ft Wireless Transmission.
• Fully Waterproof.
• Up 45 ft Detection Range (can be further with large objects).
• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.

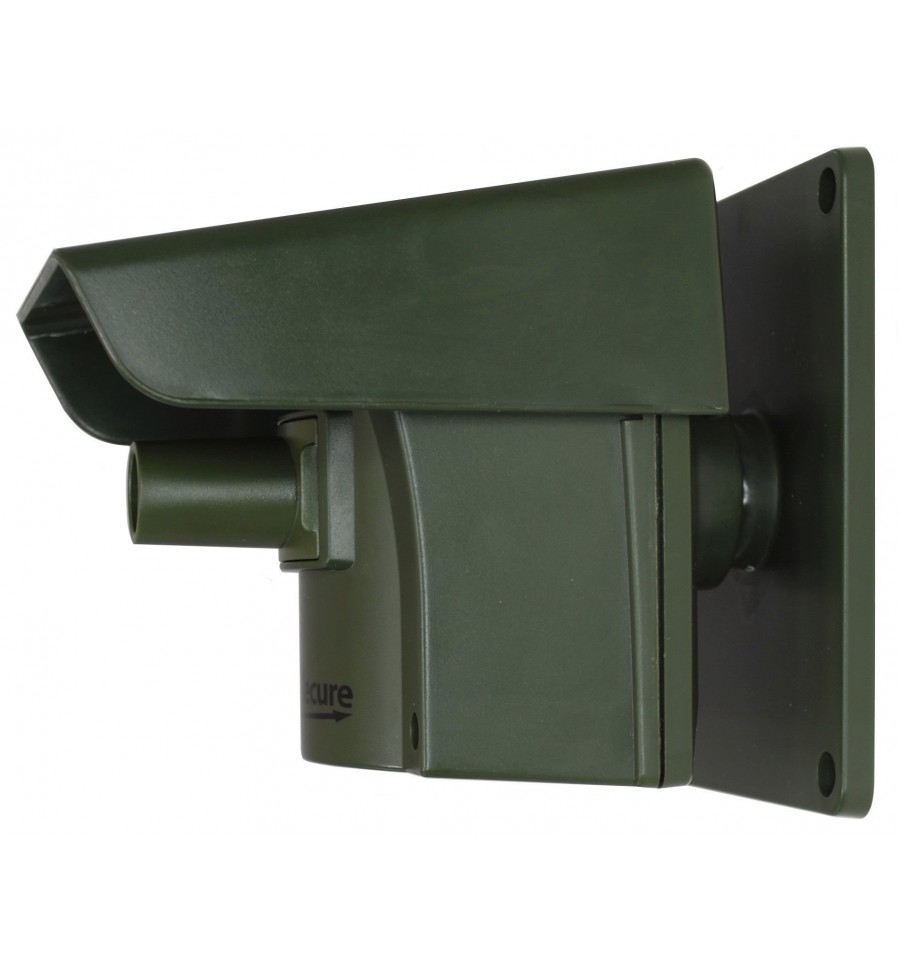

• Sunshade & Rain Hood.
• Lens size adjusting Caps (ideal to help detect moving vehicles).
• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
  • 24 hour operation (for use in locations where all day detection is prefered).
  • Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

Lens Caps:

The PIR is supplied with 3 Lens Cap Settings which together with internal adjustments allow you to set the PIR to suit your application, these include:

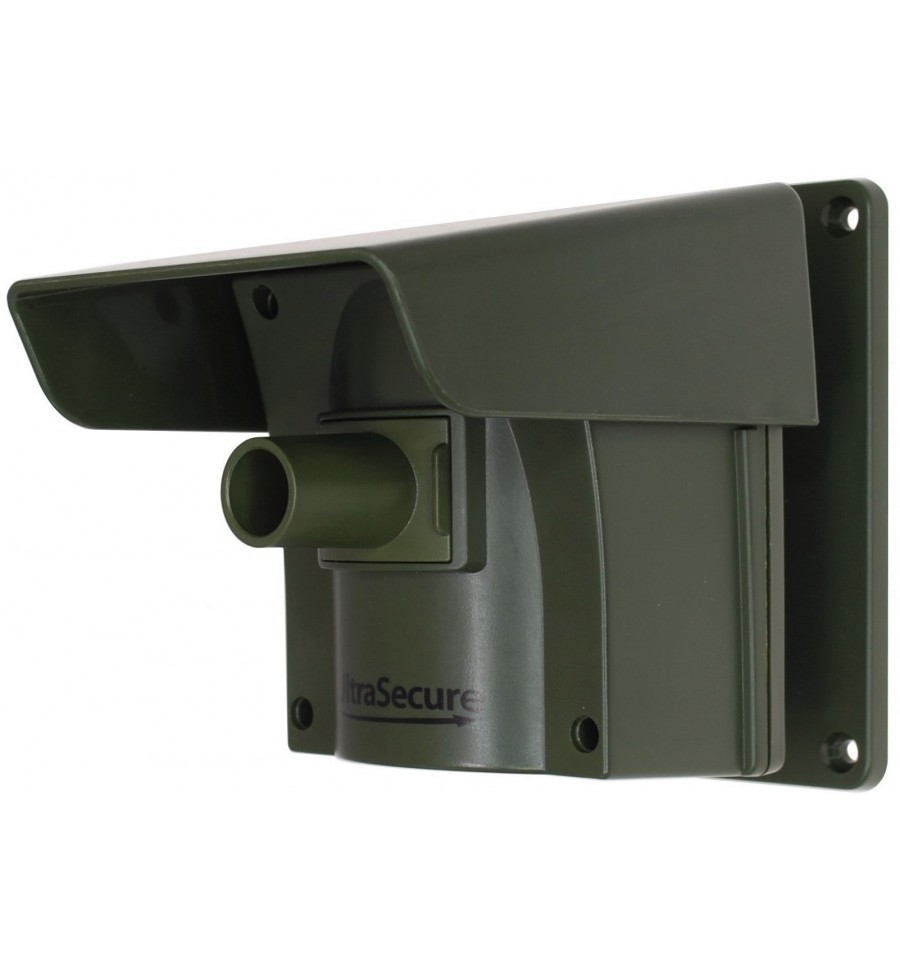

• Pencil Beam Attachment: Provides a very narrow Beam to avoid small to medium ground animals.
• Medium Beam Attachment: Provides a narrow Beam to avoid most small to medium ground animals whilst detecting Vehicles more efficiently than the Pencil Beam.
• No attachment Fitted: Ideal when the detection of Vehicles is most important to you.

Installation Tip:

We recommend the PIR is fitted looking away from a rising Sun rather than towards it, if this is not possible then care should be taken when choosing the location and direction of the PIR, this basic principle is the same for most outdoor PIR's.

The PIR's can also easily be hidden inside plastic and wooden structures with some simple imaginative creation to help hide them, the strong 2400 ft wireless transmission helps this be possible.

Operational Options:

This PIR has the unique feature of being able to use the PIR in two ways:

• 24 hour operation (for use in locations where all day detection is prefered).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

This allows you to perhaps have some PIR's working throughout the day on a subtle chime from the Receiver, and other PIR's that only work when it is dark, which would trigger a louder Siren on the Receiver (ideal for protecting buildings like workshops etc).
