Wireless entry alert chime & doorbell – plug-in 4 channel receiver (DA600+)
Reference: 004-3840-00
300 metre DA600+ Wireless Door Alert System designed to monitor a closed door.
$365.76 all tax excl.
Order now and we will send it as soon as it is back in stock.
This item cannot be ordered at the moment. Ask us and we will tell you when it is back or suggest an alternative.
Ask about availabilityQuantity discounts
| Quantity | Unit price | You save |
|---|---|---|
Not sure it's the right kit for your need?
Free advice from our security specialists: we help you choose, set up and install.
Ask about this product
Description

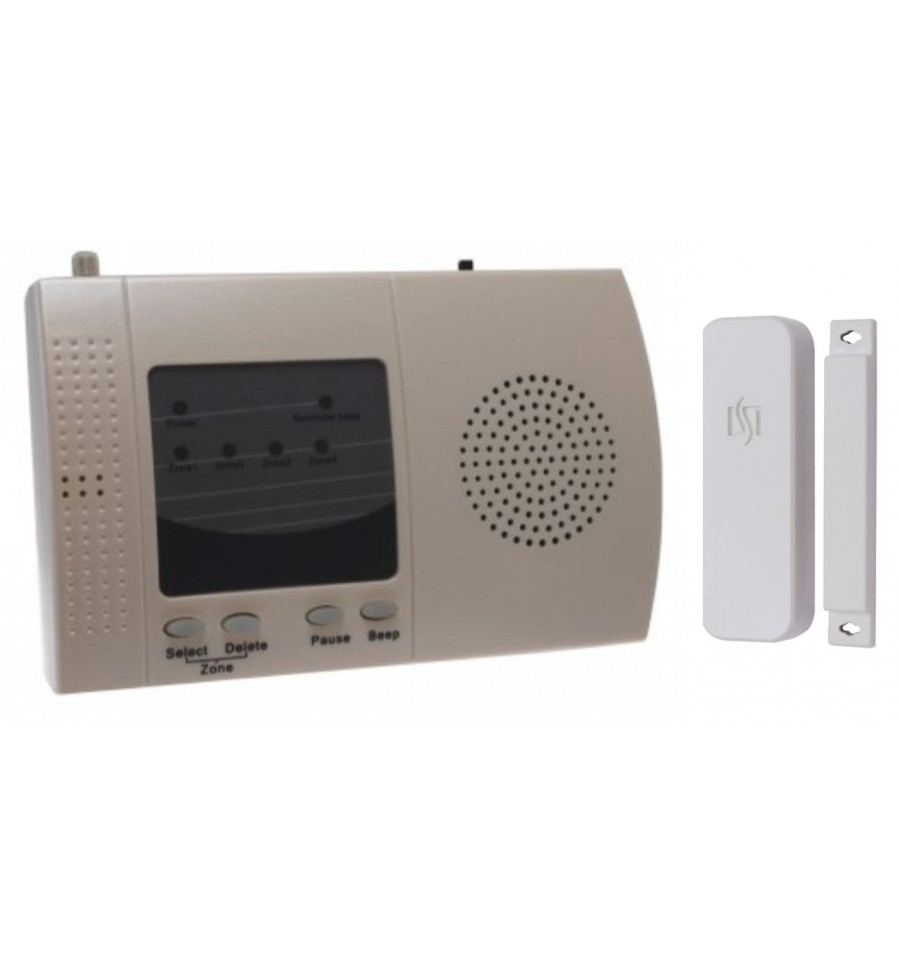

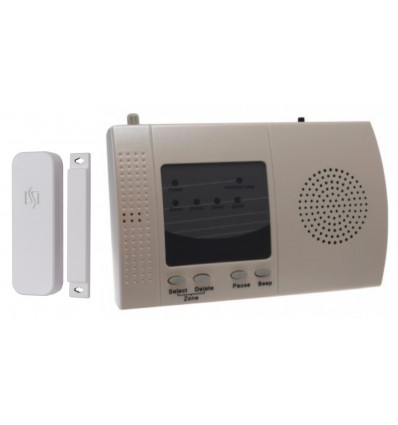

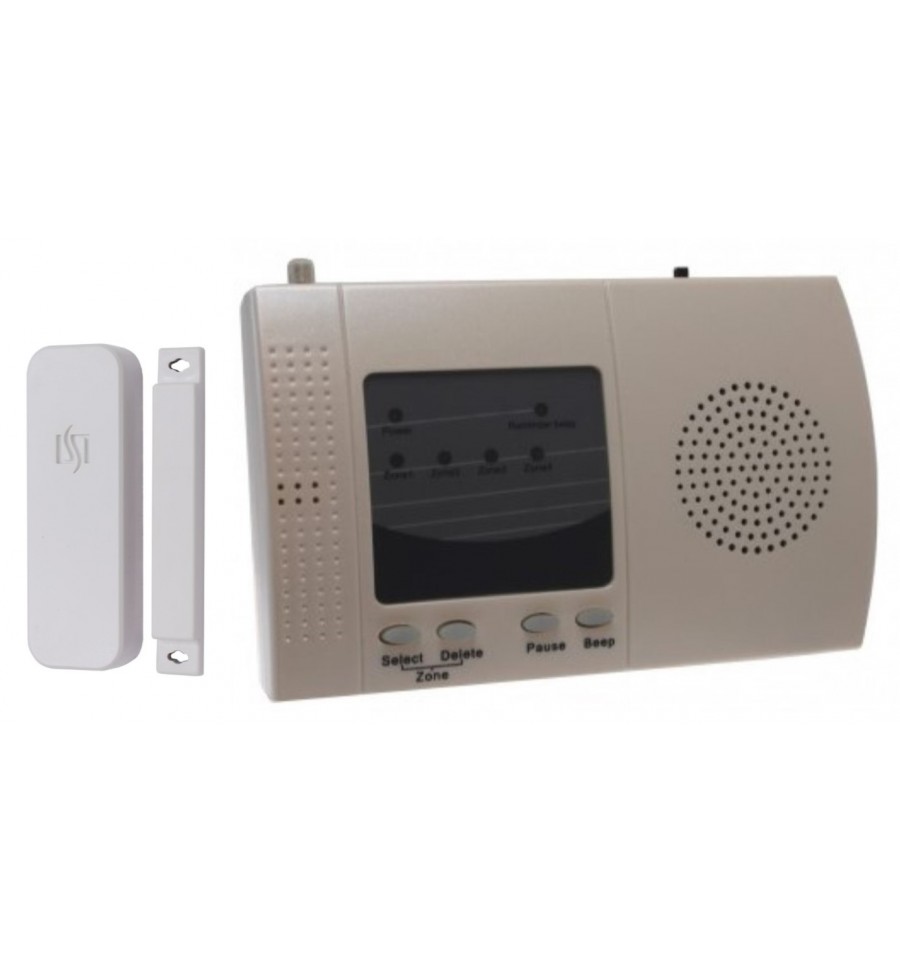

300 metre DA600+ Wireless Door Alert designed to monitor a closed door being opened.
Supplied with a:
- Battery Powered Wireless Door Contact.
- 4 channel Wireless Receiver.
In the event of the Door being opened, the Internal Receiver will chime (adjustable volume) together with the option of adding Flashing LED's, Buzzers, Sirens or Telephone Diallers should your application need it.
Additional Door Contacts can be added including the standard 300 metre model (004-2820) supplied within this kit or the long range 700 metre Solar Powered model (004-3800).

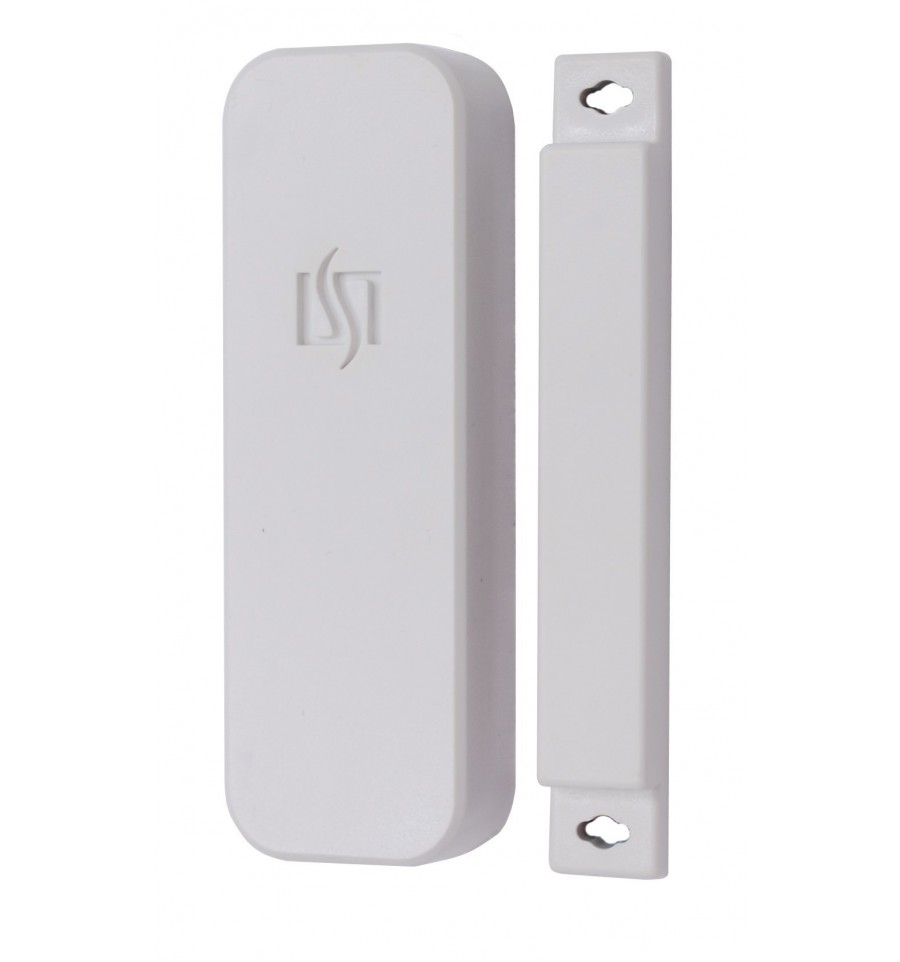

Door Contact:
The wireless range between the Door Contact and Receiver is 300 metres (line of sight) which equates to around 100 - 150 metres in most applications, this can be increased up to 900 metres and by adding a Signal Repeater (004-2910), and far more by adding more.

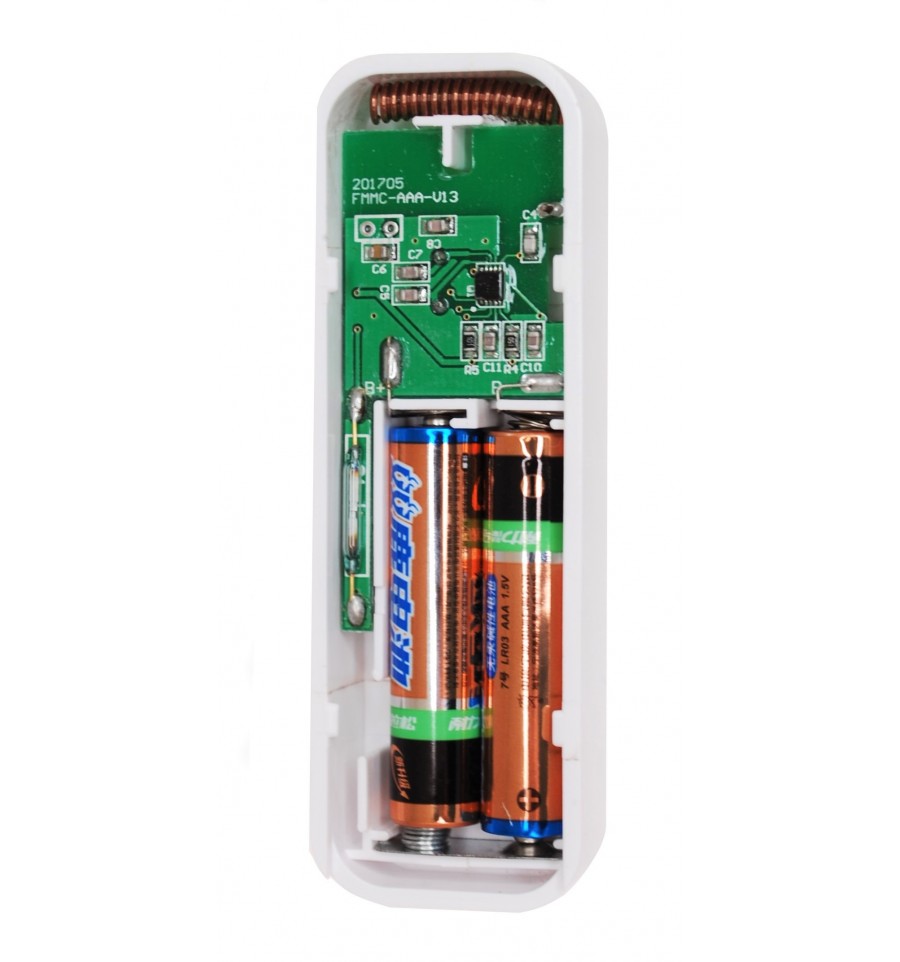

The Magnetic Door Contact is powered by 2 x AAA batteries which would last between 1 - 2 years in most applications.
They are fitted using double sided tape and a couple of small screws in some applications, and would be fitted onto a door and door frame in such a position that both parts are within 1 - 8 mm from each other when the door is closed. The normal location would be on the top ledge about 1/3rd in from the hinge.
Receiver:
The Indoor 4 - Channel Wireless Receiver is powered by a standard 3-pin Plug in Transformer and has the following features:
- 4 x Adjustable Dry Relay N/O or N/C Outputs (often used to trigger auto-diallers, timer relays).
- Adjustable 12v DC Outputs (often used with sirens & flashing lights).
- ON/OFF Switch.
- Volume Control.
- Will work with up to 128 sets of Sensors.
- Optional Reminder Bleeps.
- Exit Delay Option.
- Solar Powered Magnetic Contact.
- Solar Powered PIR's (indoor & outdoor).
- Solar Powered Perimeter Beams.
- Panic Buttons.
- Solar Sirens (for use as an alert or siren).
- Additional Receivers.
What's in the box
- 1×Wireless 4 channel Receiver
- 1×Power Supply
- 1×Set of 900 ft Wireless Magnetic Contacts
- Receiver Size: 6.2" x 4.2" x 1.5"
- Power Supply: 15v DC 1amp (plug in transformer)
- ON/OFF Button: Yes
- Adjustable Volume Control: Yes
- Available Channels: 4
- Max sets of Sensors per Channel: 32
- Maximum sets of Sensors per Receiver: 128
- Output Voltage: 12v DC
- Output Voltage Duration: 1, 10, 60 second & 5 minutes
- Built in Chimes: Yes (one per channel)
- Reminder Bleep: Yes (if programmed)
- Exit Delay: Yes 5 minutes (if programmed)
- Frequency: 434.6 MHz
- Standby Current: 20 mA
- Alarm Current: 180 mA
- Relay Rating: 24v DC or 120v AC (2 amp)
- Wireless Working Range: 900 ft (line of sight)
- Size of Switch: 3.5" 1.2" x .5"
- Size of Magnet: 3.5" x .5" x .4"
- Installation Method: Double Sided Tape (supplied) & 2 x Screws (optional)
- Transmission Range: 900 ft (line of sight)
- Contact Distance: Approximately .5"
- Batteries: 2 x AAA Batteries
- Battery Life: 1 - 2 years (depending on usage)
