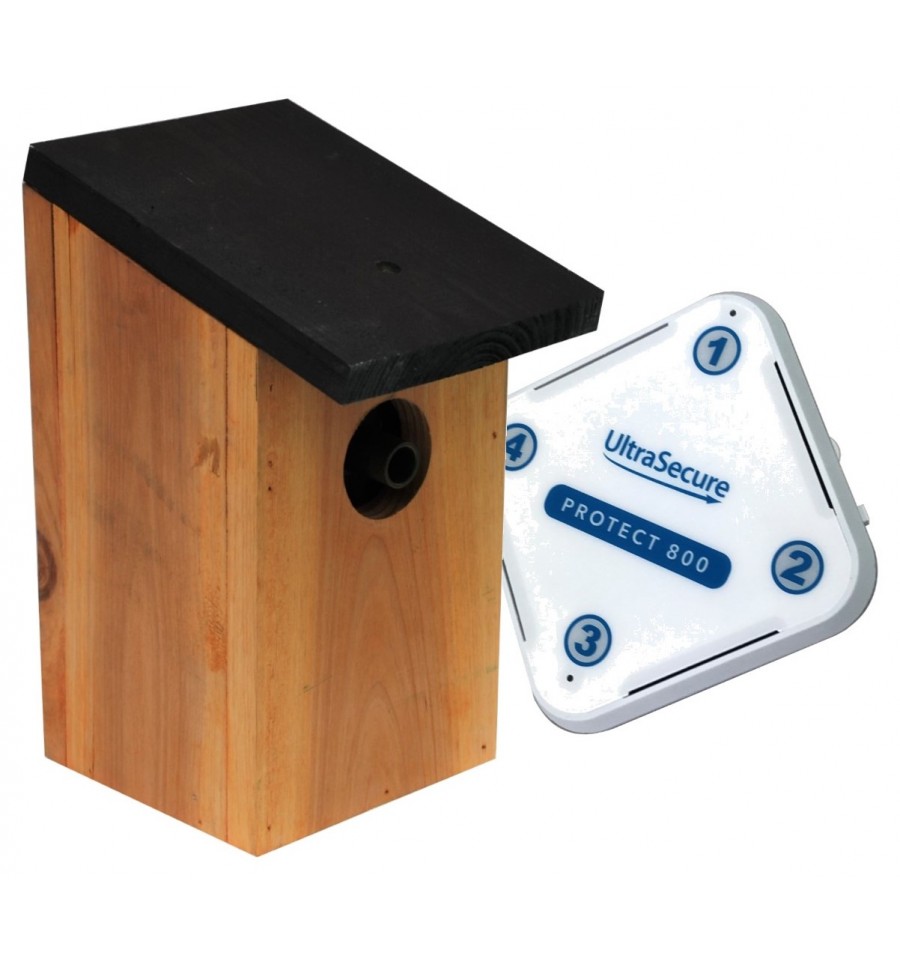

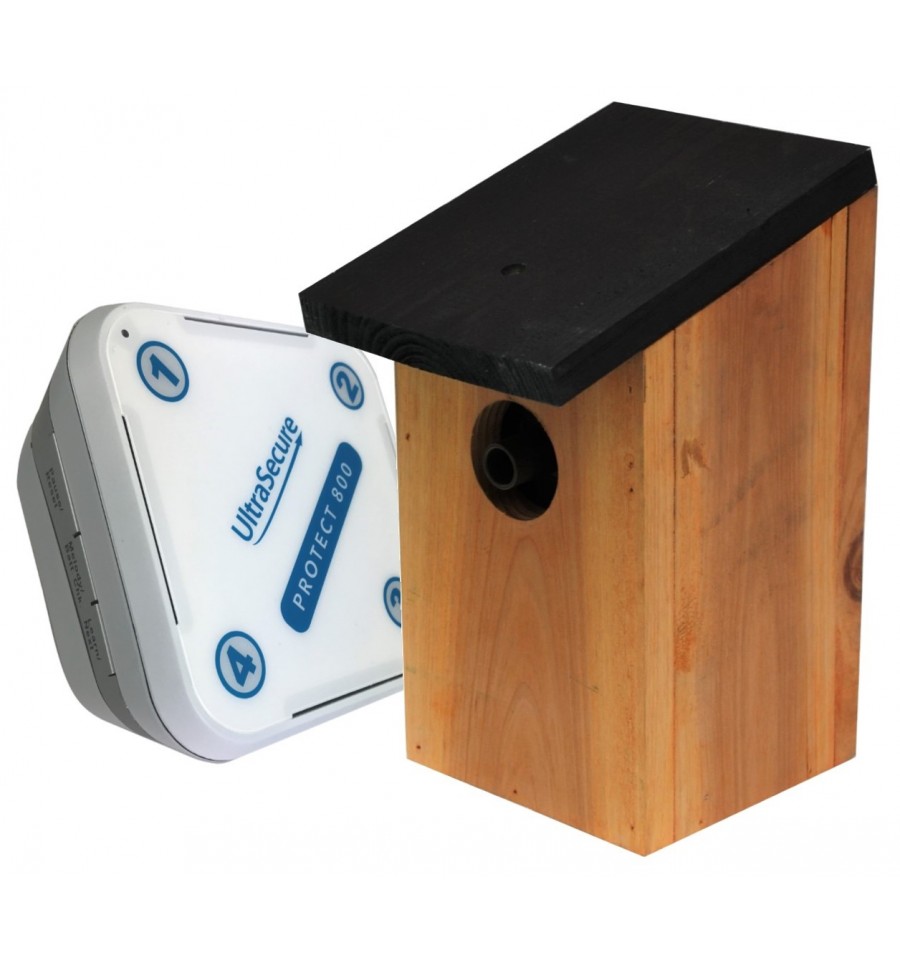

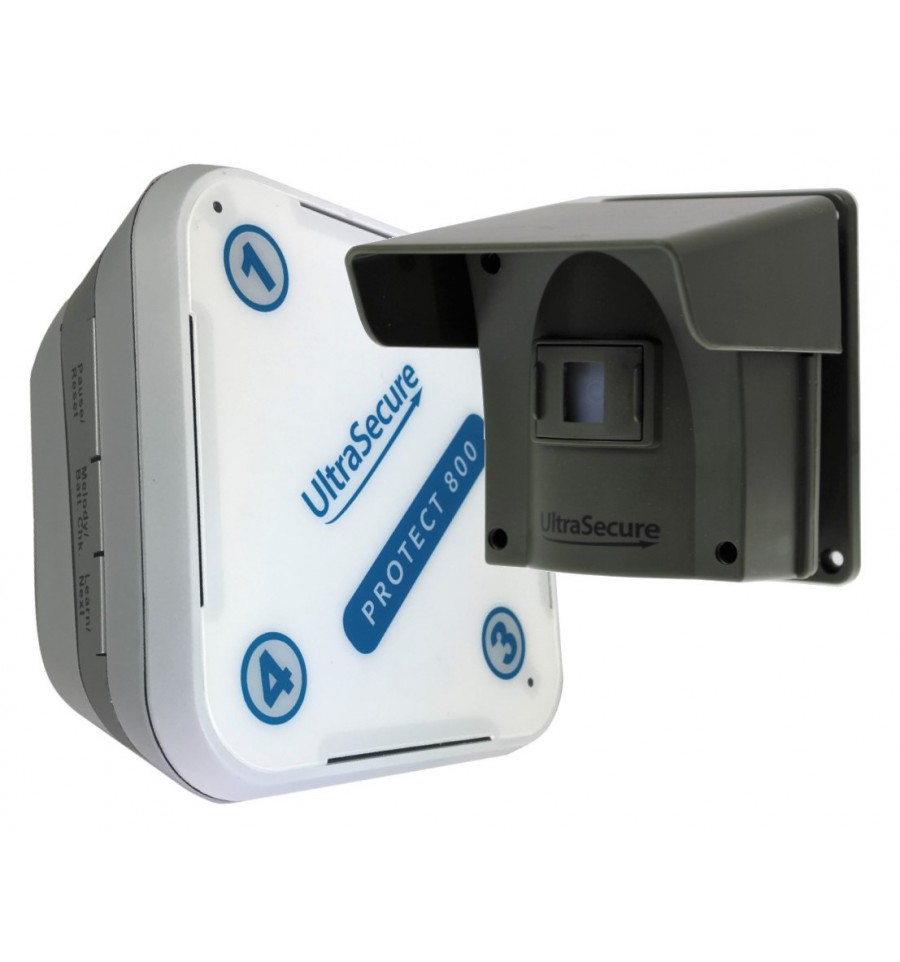

Protect 800 Driveway Alert Bird Box System

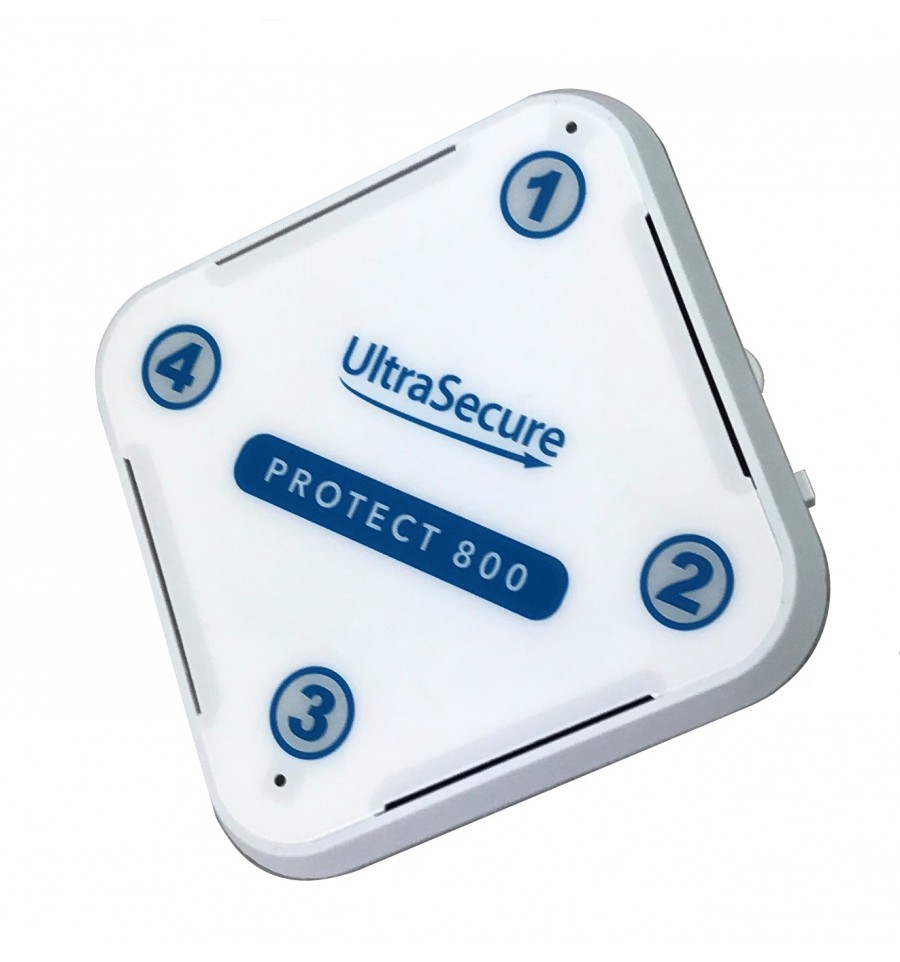

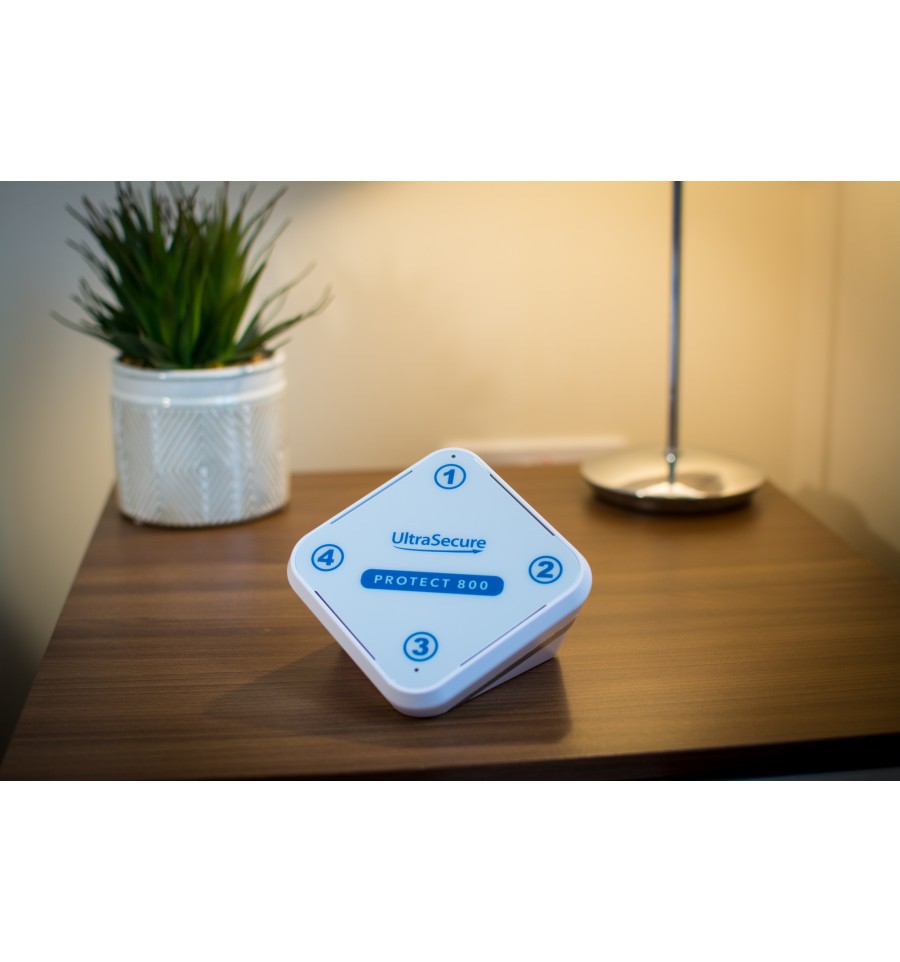

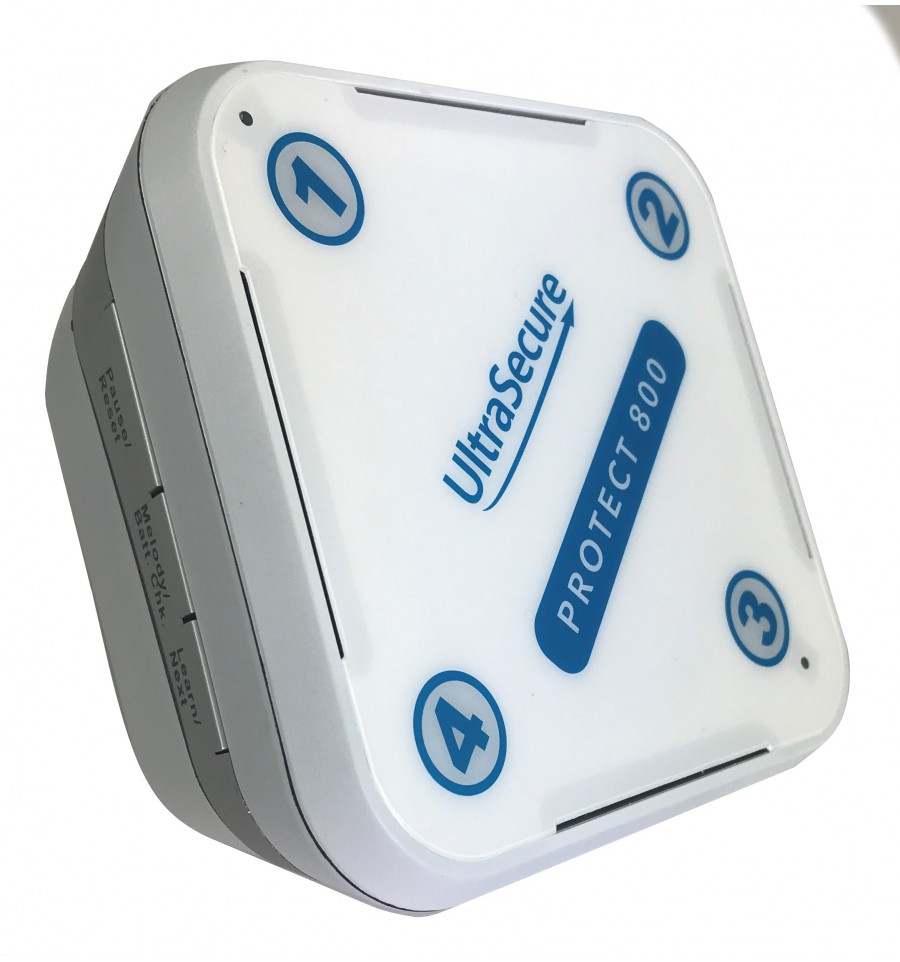

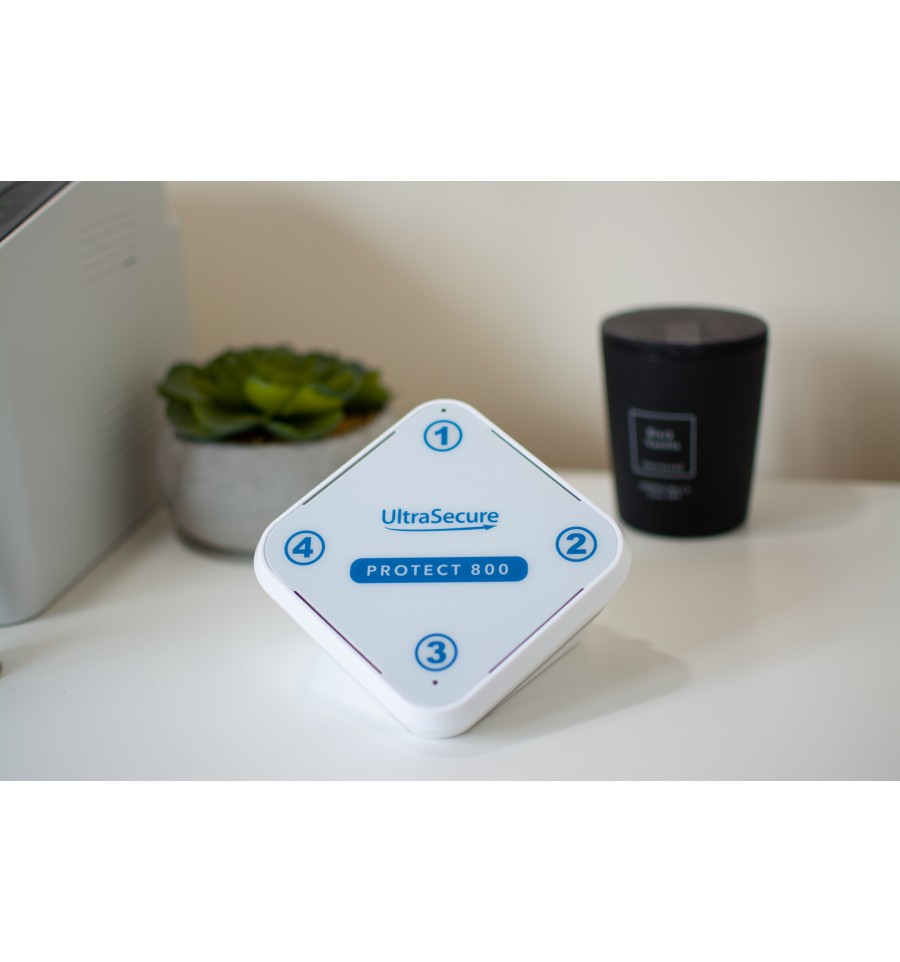

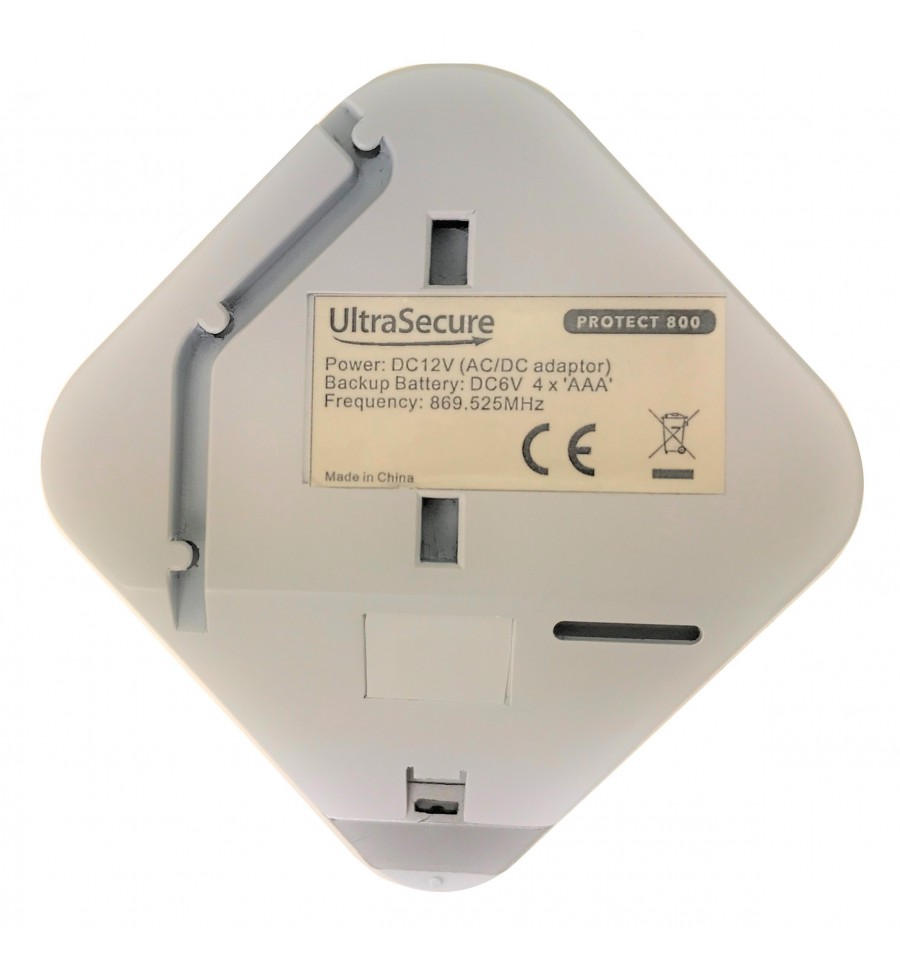

• 1 x Indoor 4-channel Wireless Receiver.

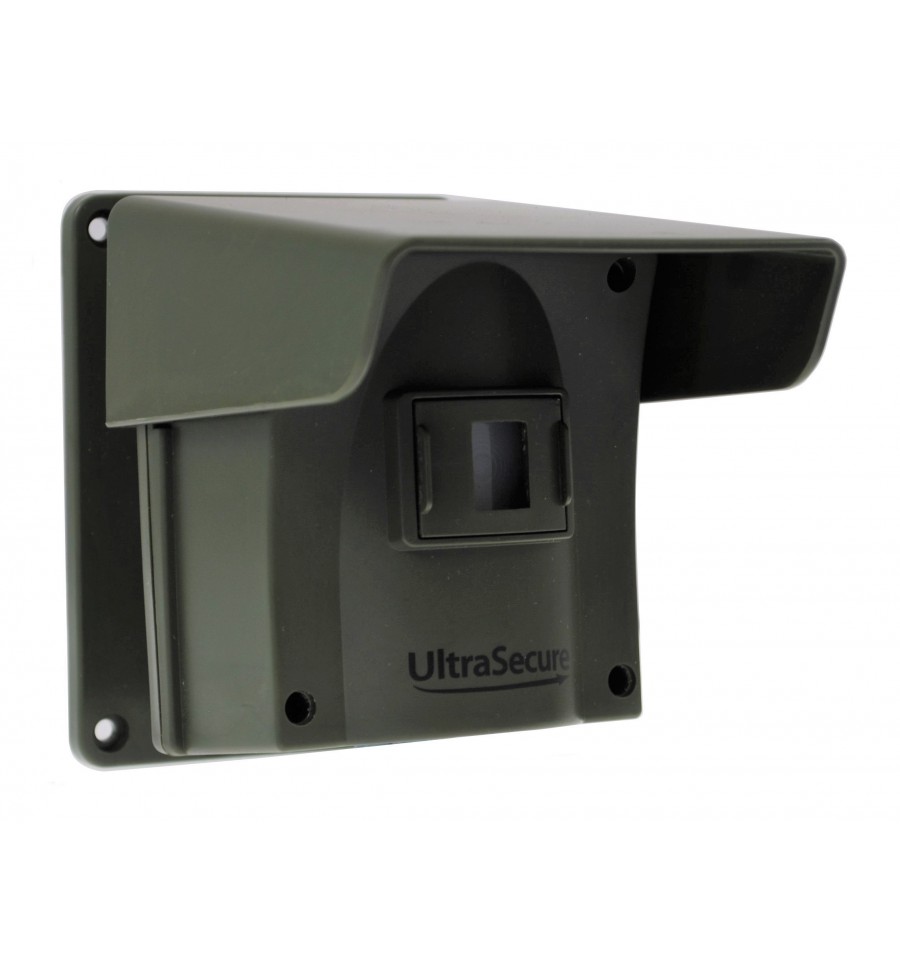

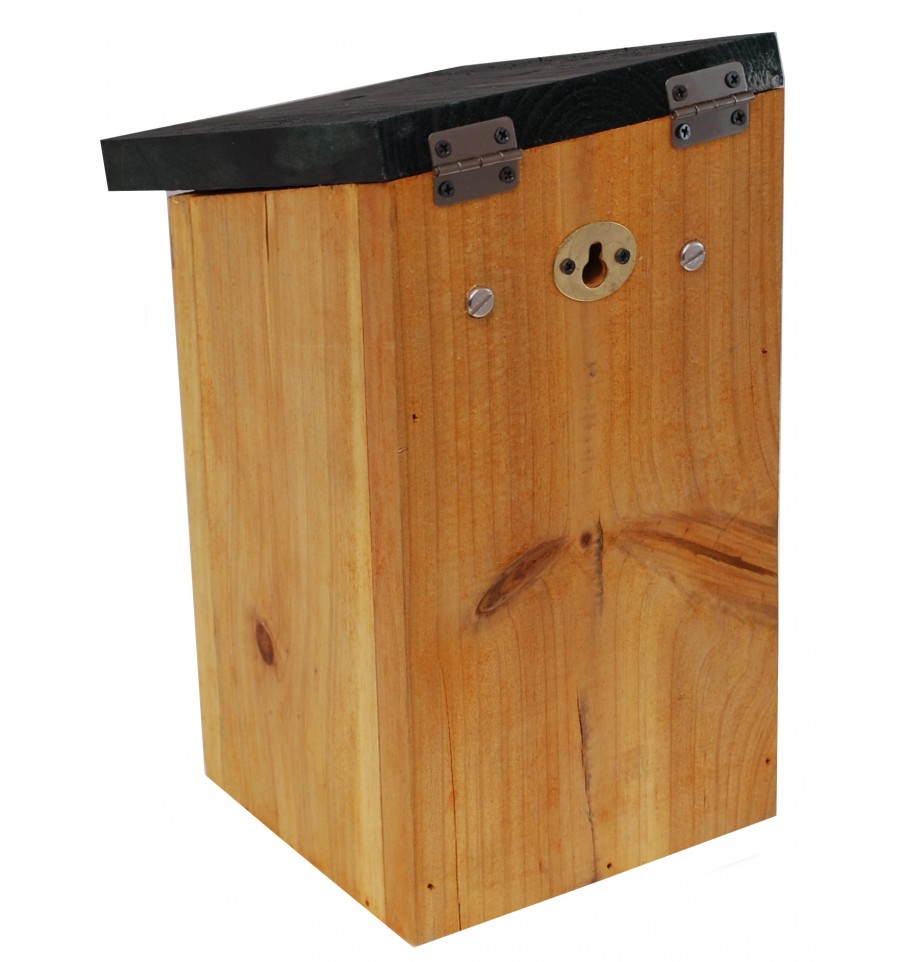

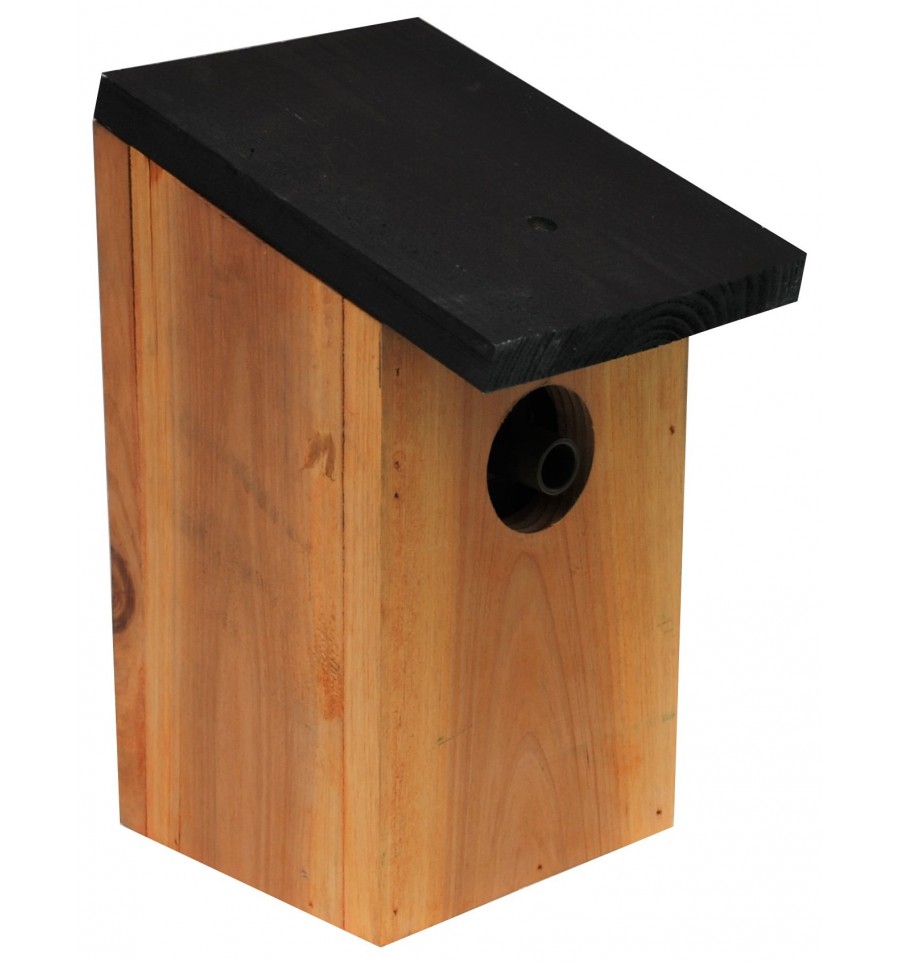

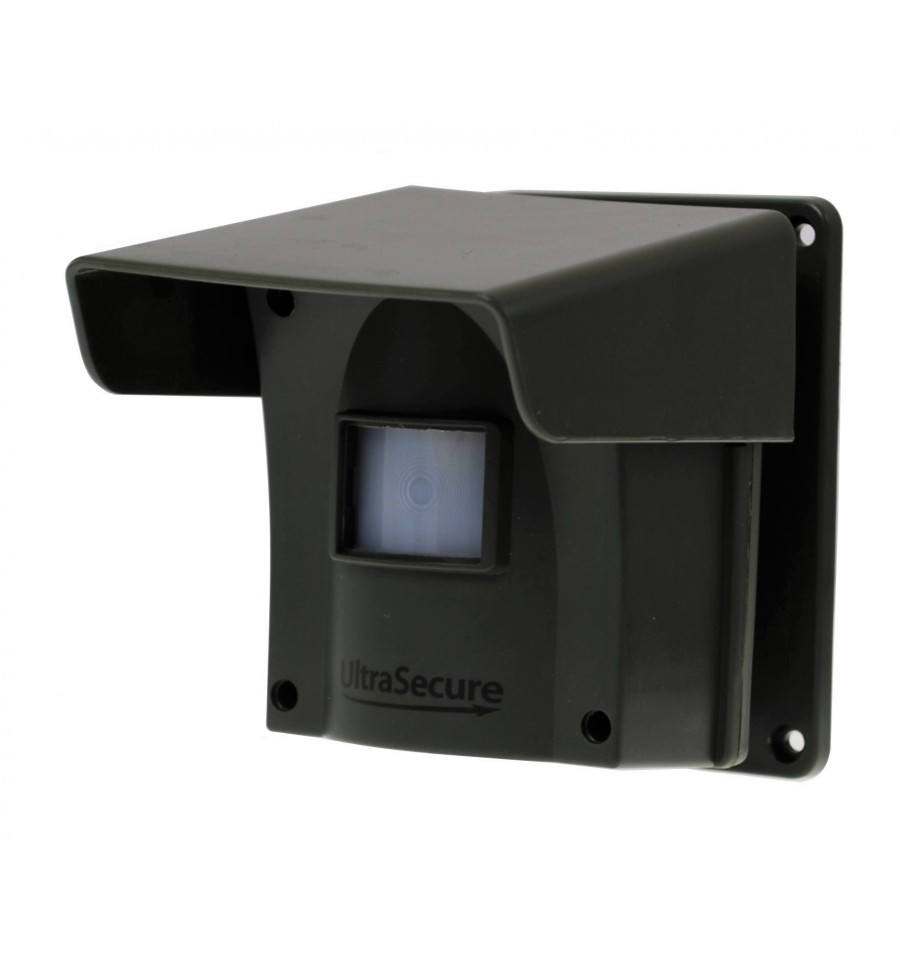

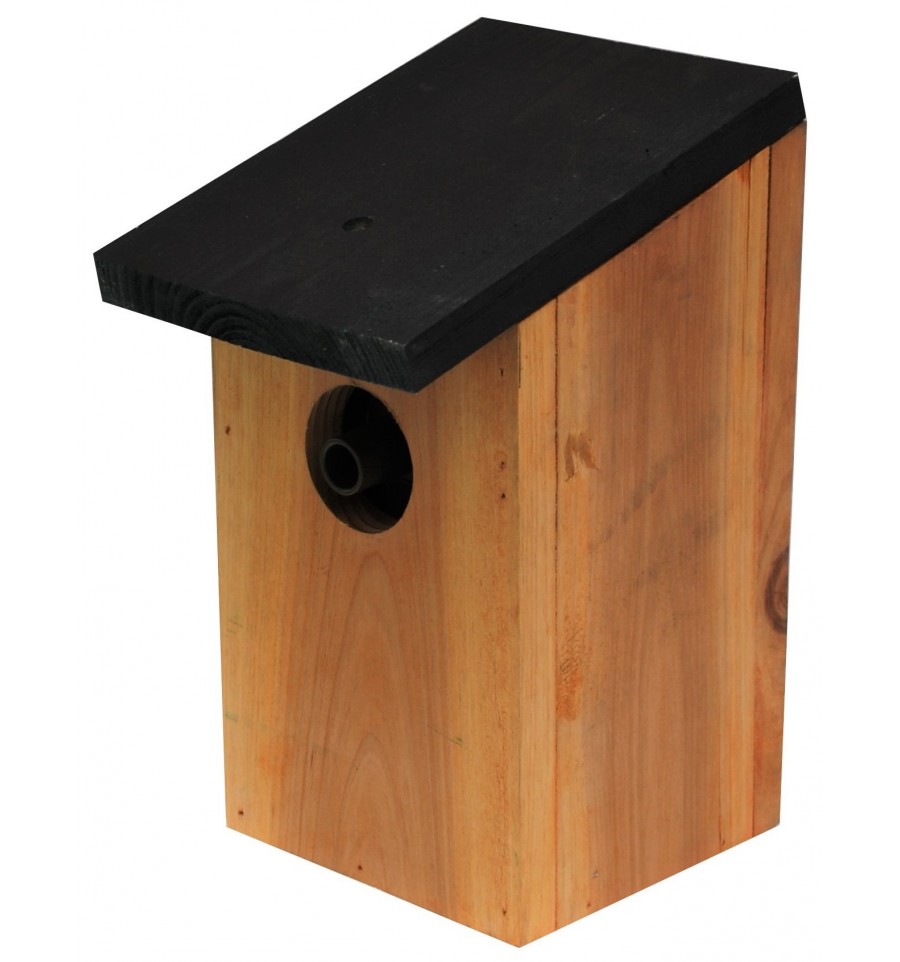

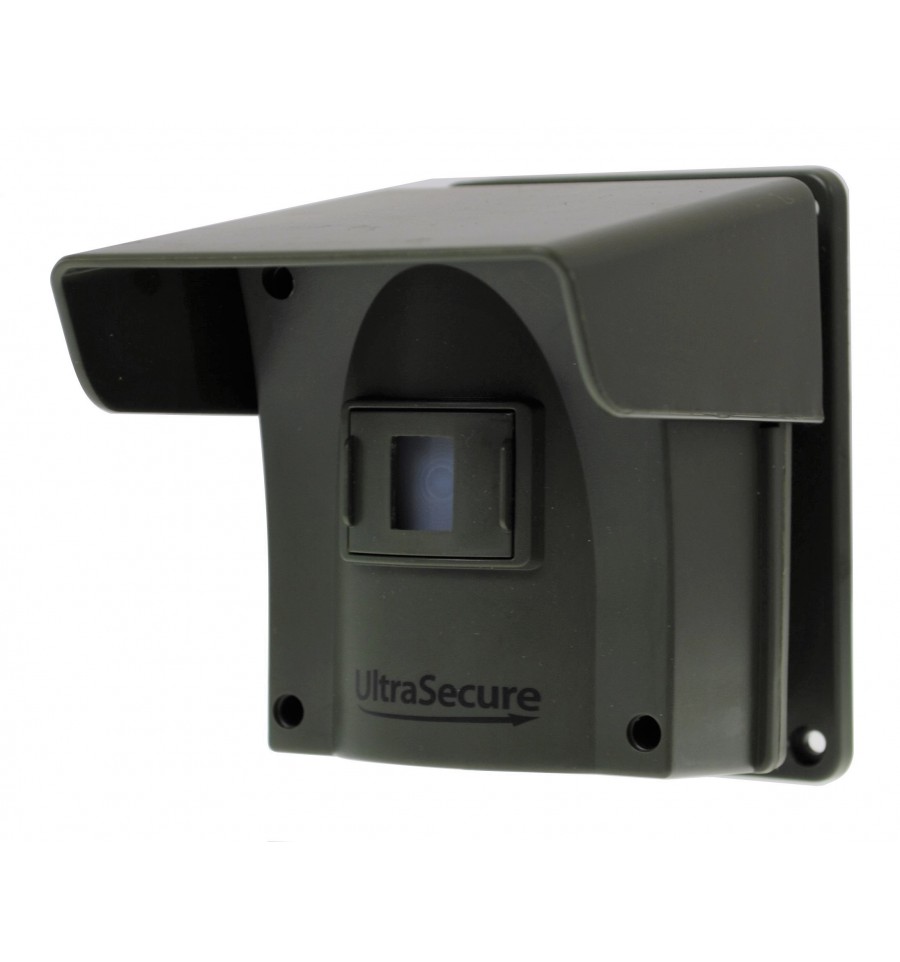

• 1 x Outdoor Wireless PIR inside a Wooden Bird Box.

Additional Indoor & Outdoor Receivers can also be added (no limit).

This Alarm System is very easy to Install, most customers who have a very basic knowledge of DIY will be able to do it.

• 2400 ft Wireless Reception.
• Adjustable Volume (from low to approximately 85 decibel).
• 32 optional Melodies.

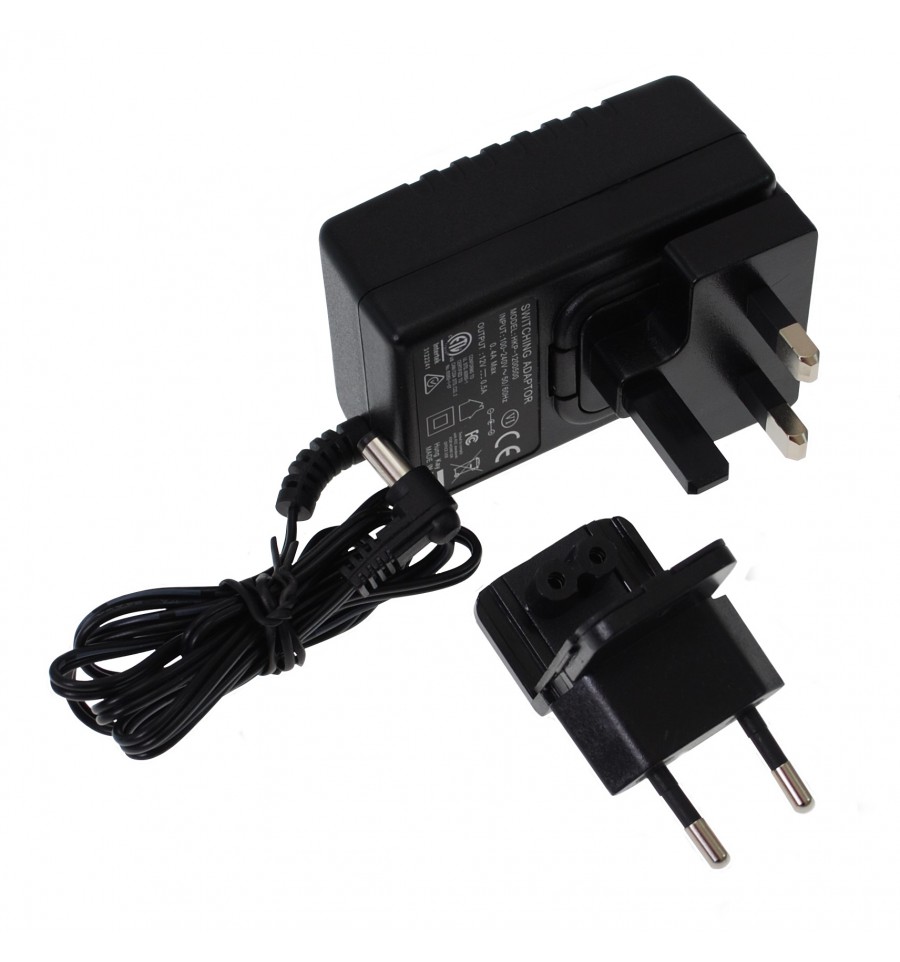

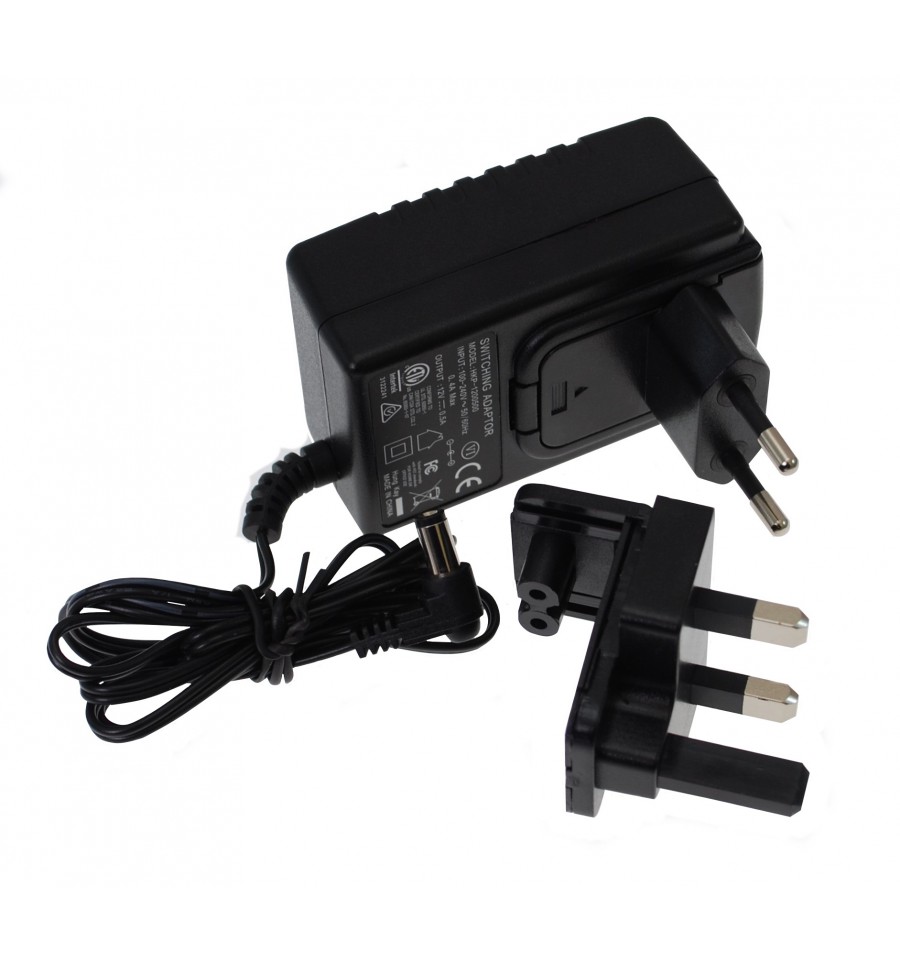

• Mains Powered using a Plug in Transformer (2-pin U.S supplied).

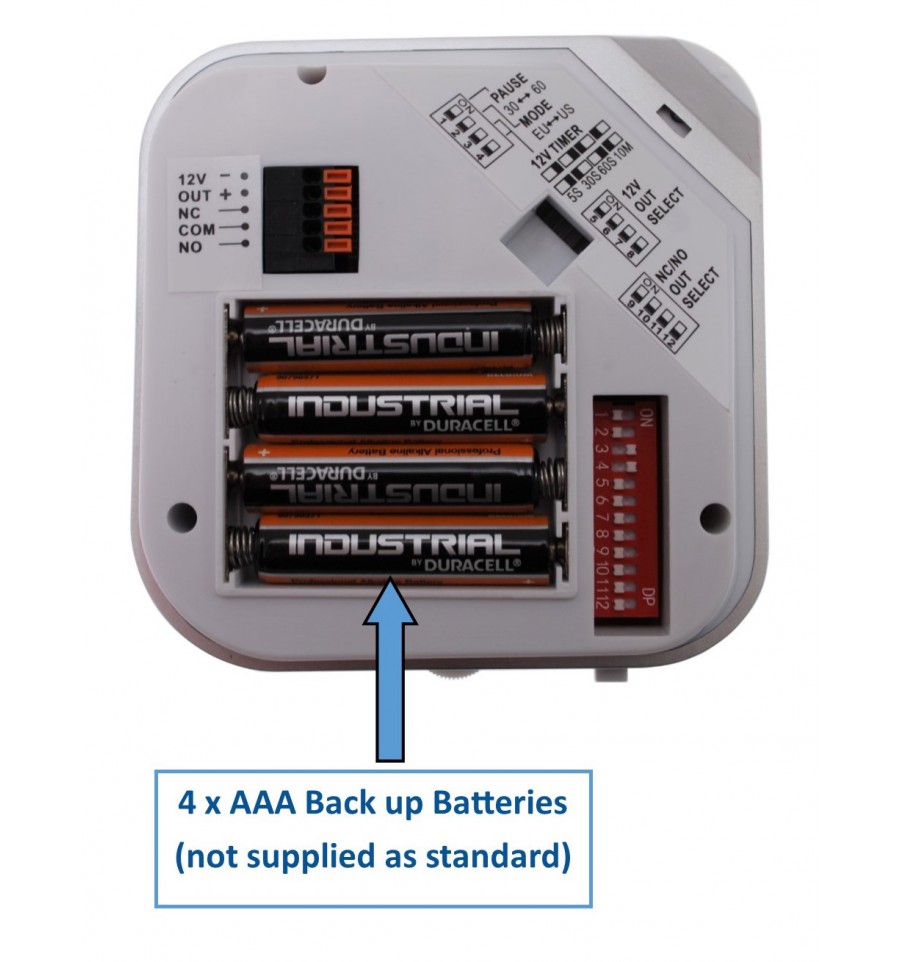

• Optional Battery Back Up using 4 x AAA Batteries (not supplied).
• LED Notification of Loss of Mains Power.
• Low Battery Notification.
• Up to 16 Detectors can be Used.
• Multiple Receivers can be used (no limit).
• Zone Indicator (visual and by chime).

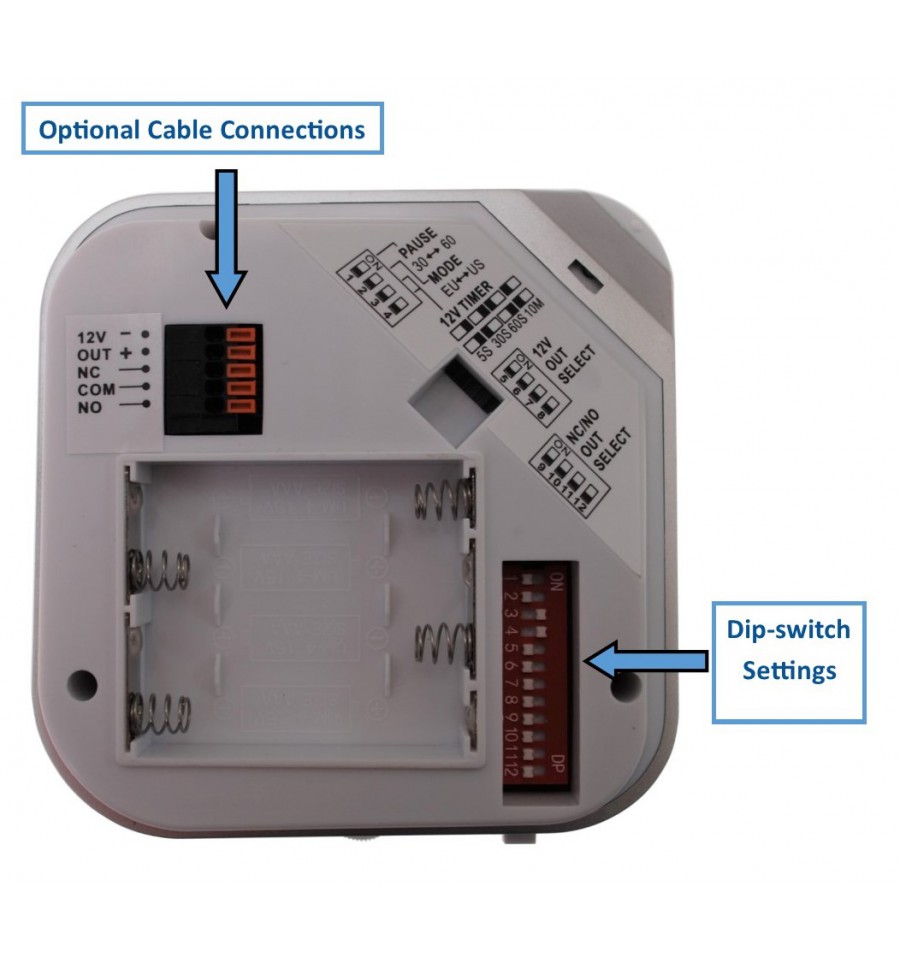

• 1 x Dry Relay Output (can be used to trigger Diallers, Flashing LED's, Siren's, Bells etc).
• 12v DC Output (can be used to trigger Flashing LED's, Siren's, Bells etc).
• Relay Duration: Momentary.
• 12v DC Output with adjustable Duration (5, 30 & 60 seconds or 10 minutes).

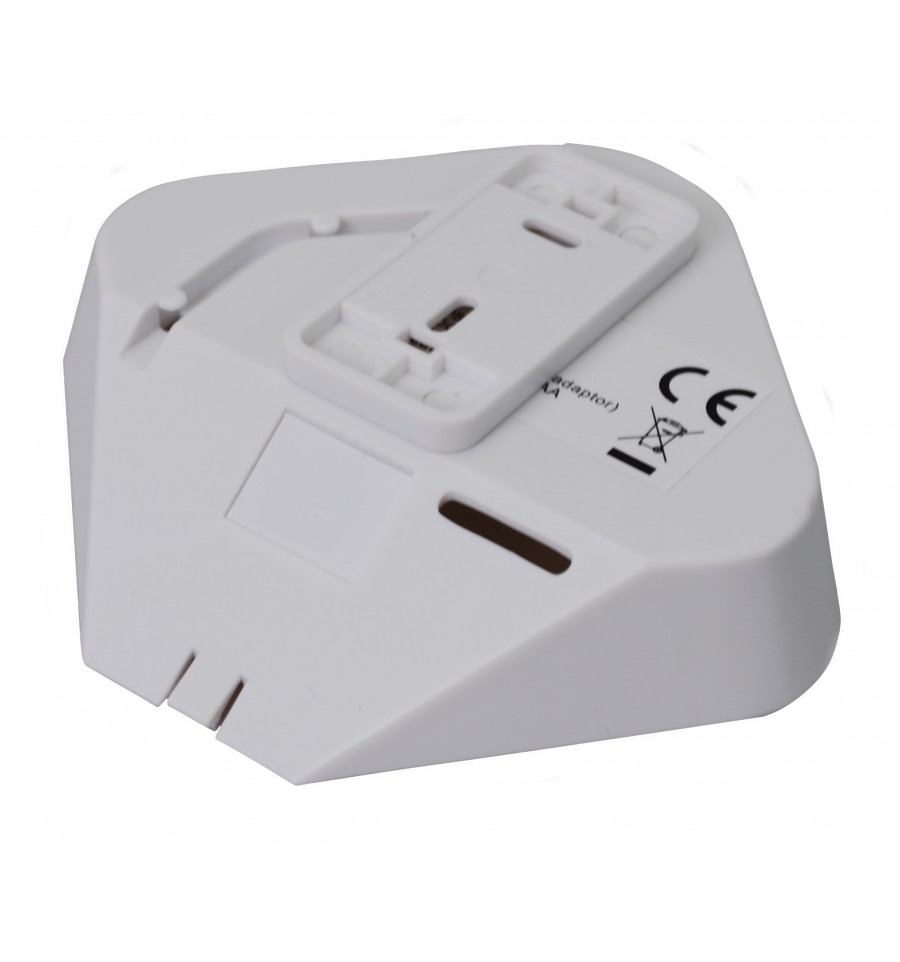

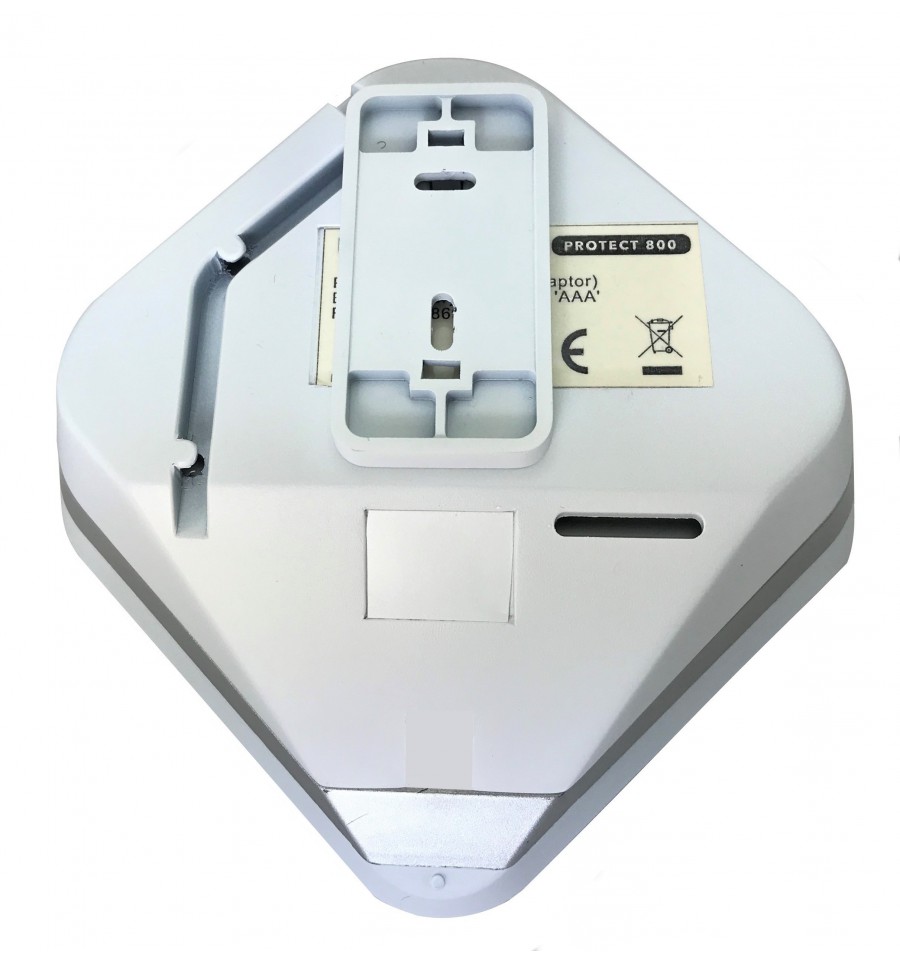

• Can be Wall or Desk Mounted.
• PIR Battery Check.
• Optional Pause Modes.

• Impressive 2400 ft Wireless Transmission.
• Fully Waterproof.
• Up 45 ft Detection Range (can be further with large objects).

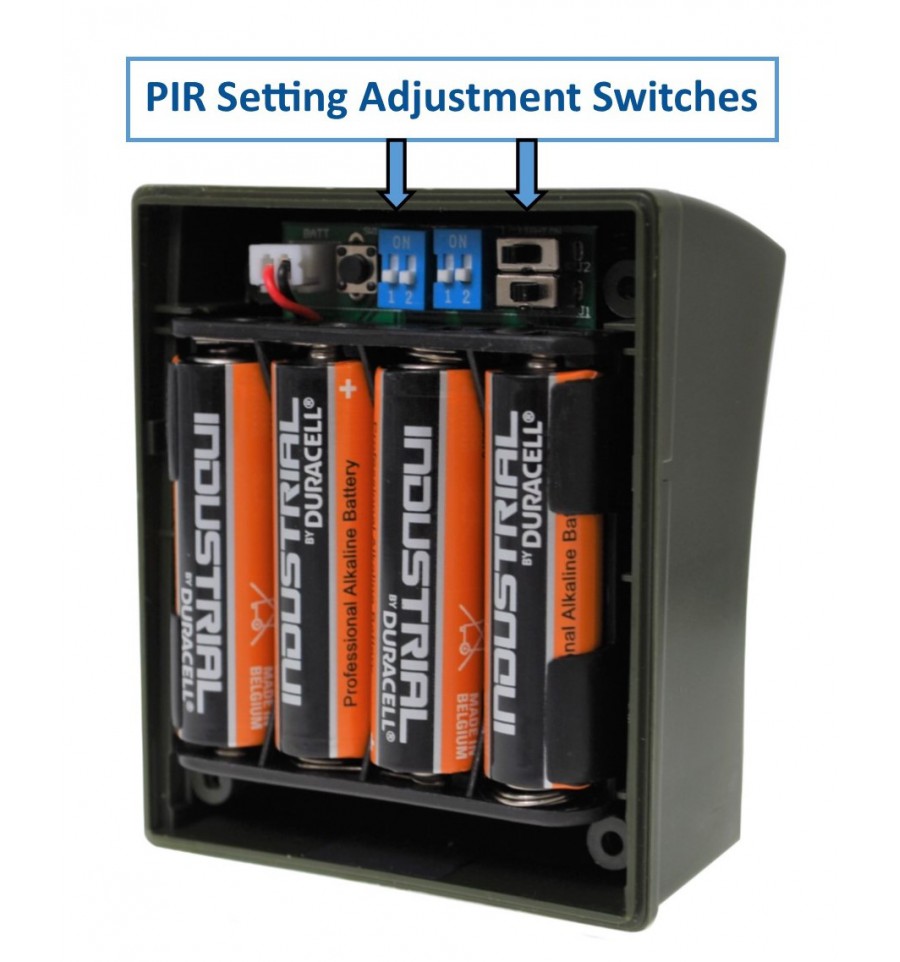

• Adjustable Sensitivity Settings.
• Up to 16 PIR's can be used with any single system.
• Lens size adjusting Caps (ideal to help detect moving vehicles).

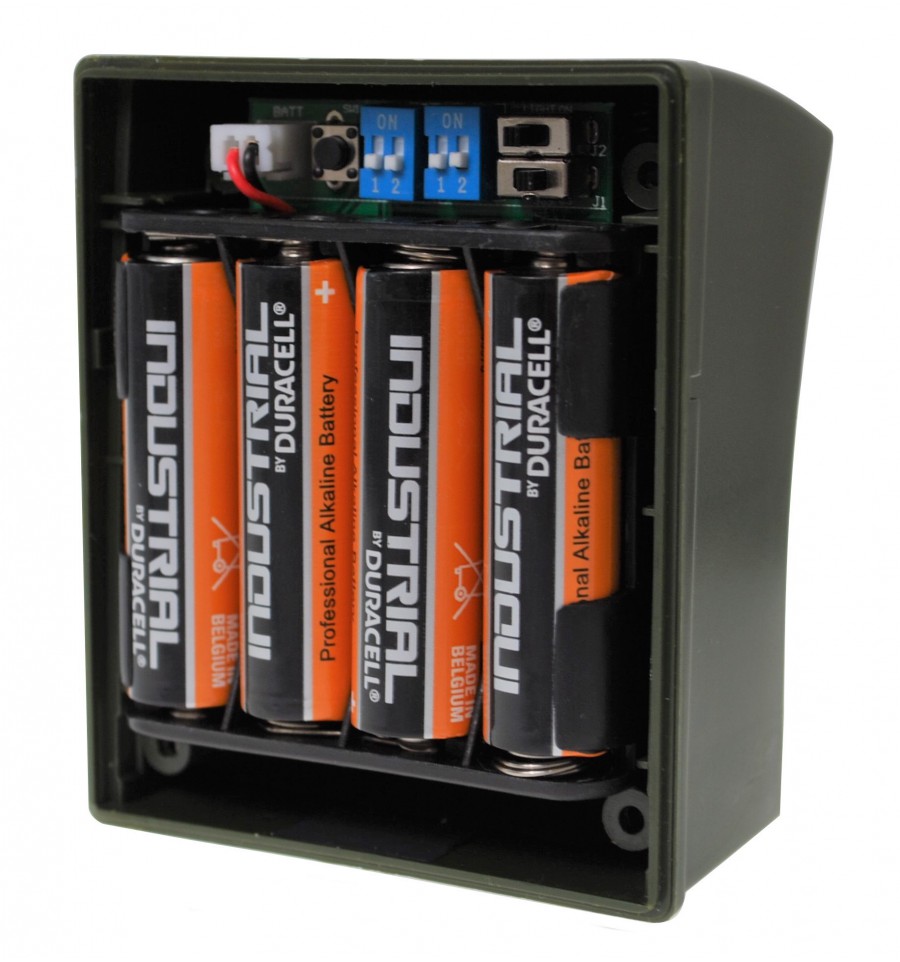

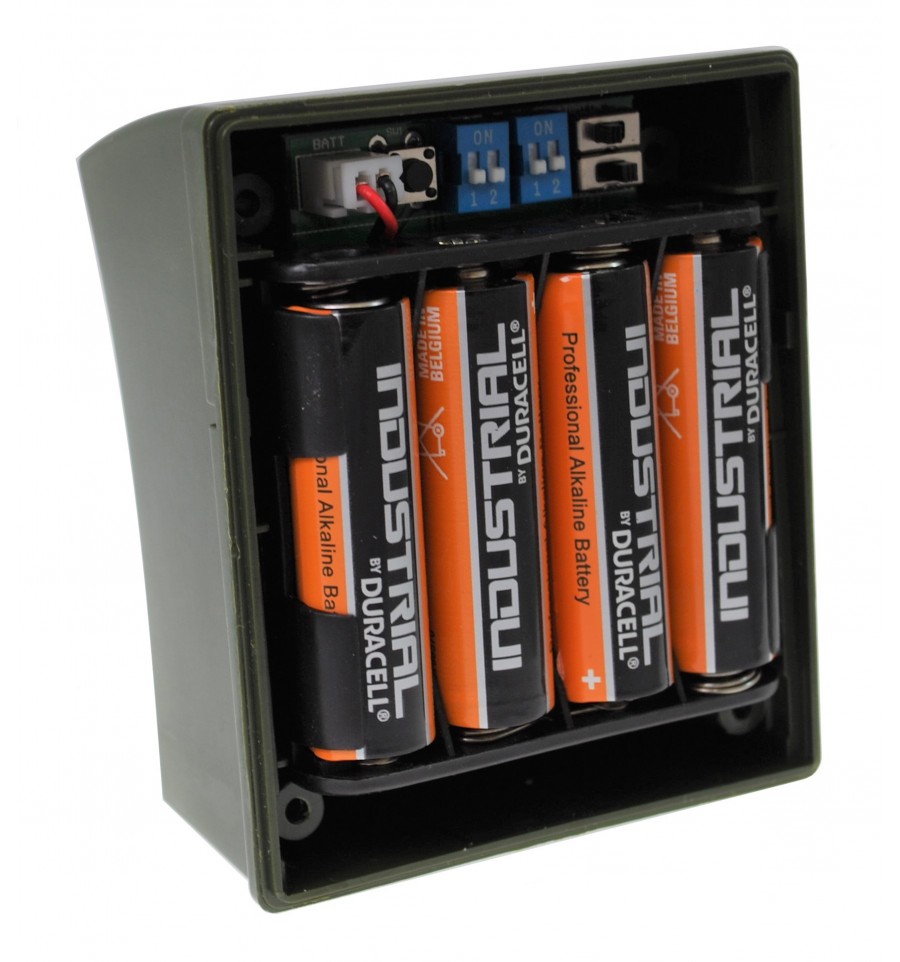

• Battery Powered (4 standard AA batteries supplied).
• Low Battery Warning (battery life expected is 9 - 12 months in most applications).
• Battery Status Checking.
• Impressive Vehicle Detection.
• Easy & Quick to Fit.
• Unique choice in operation of:
  • 24 hour operation (for use in locations where all day detection is preferred).
  • Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

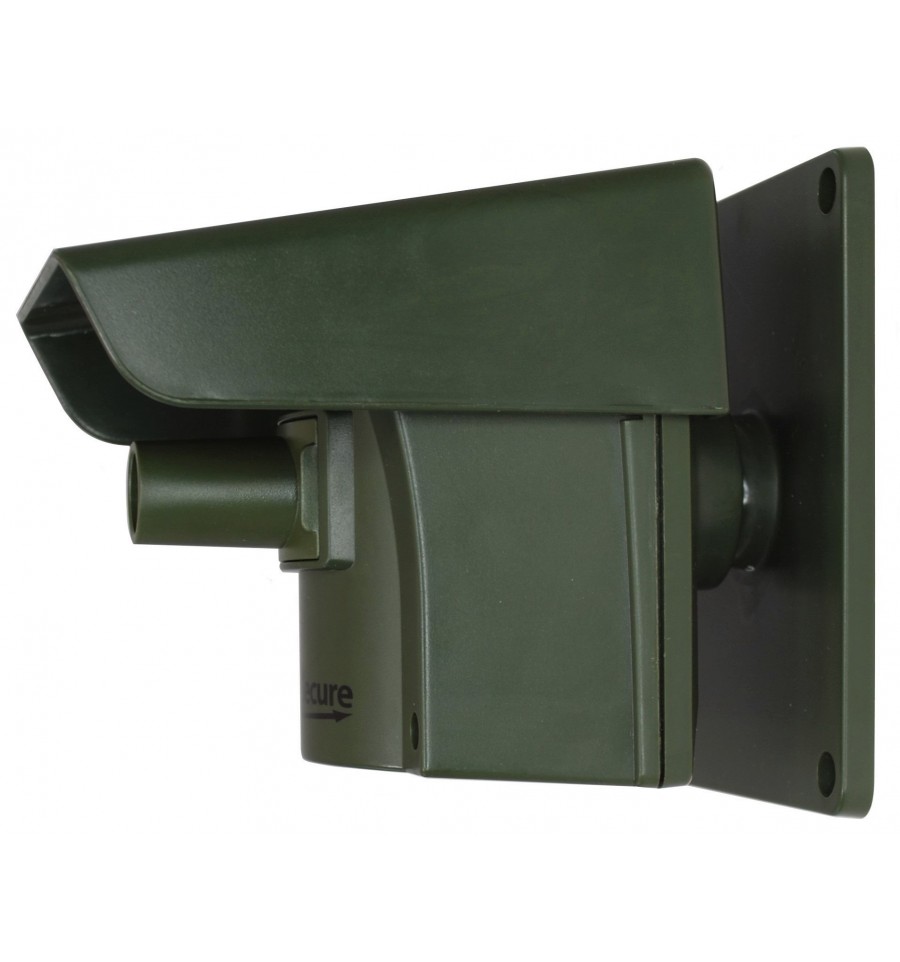

Lens Caps:

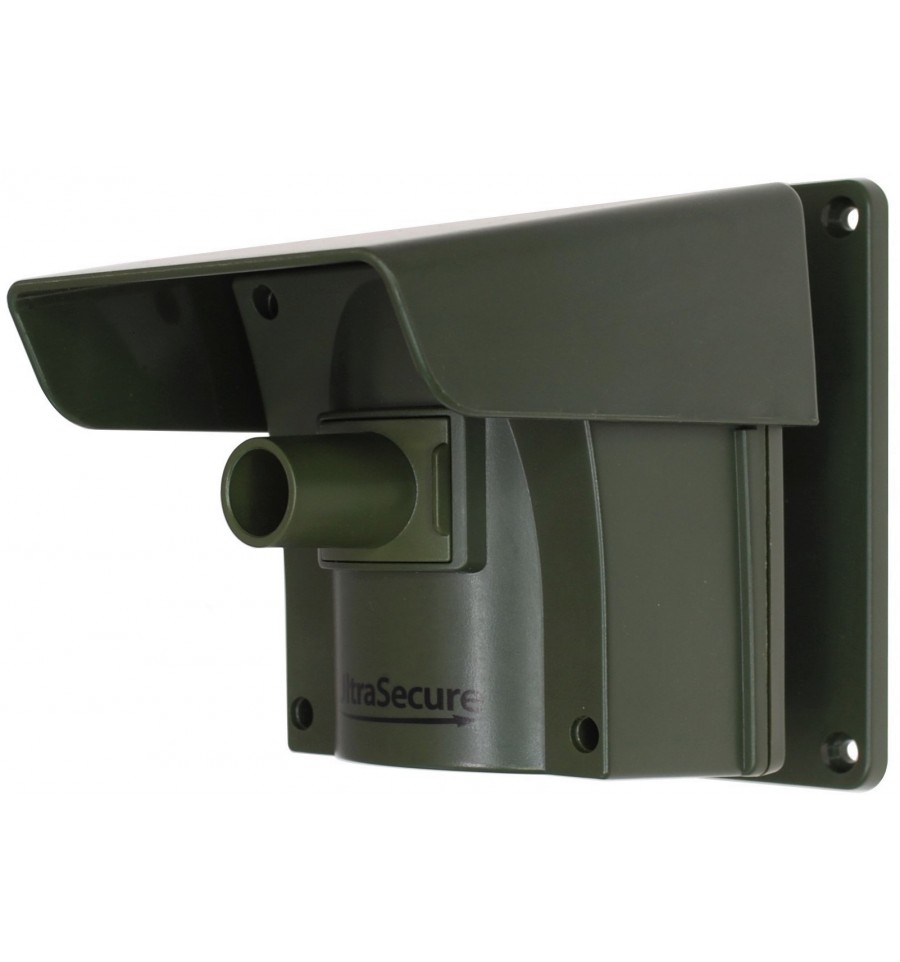

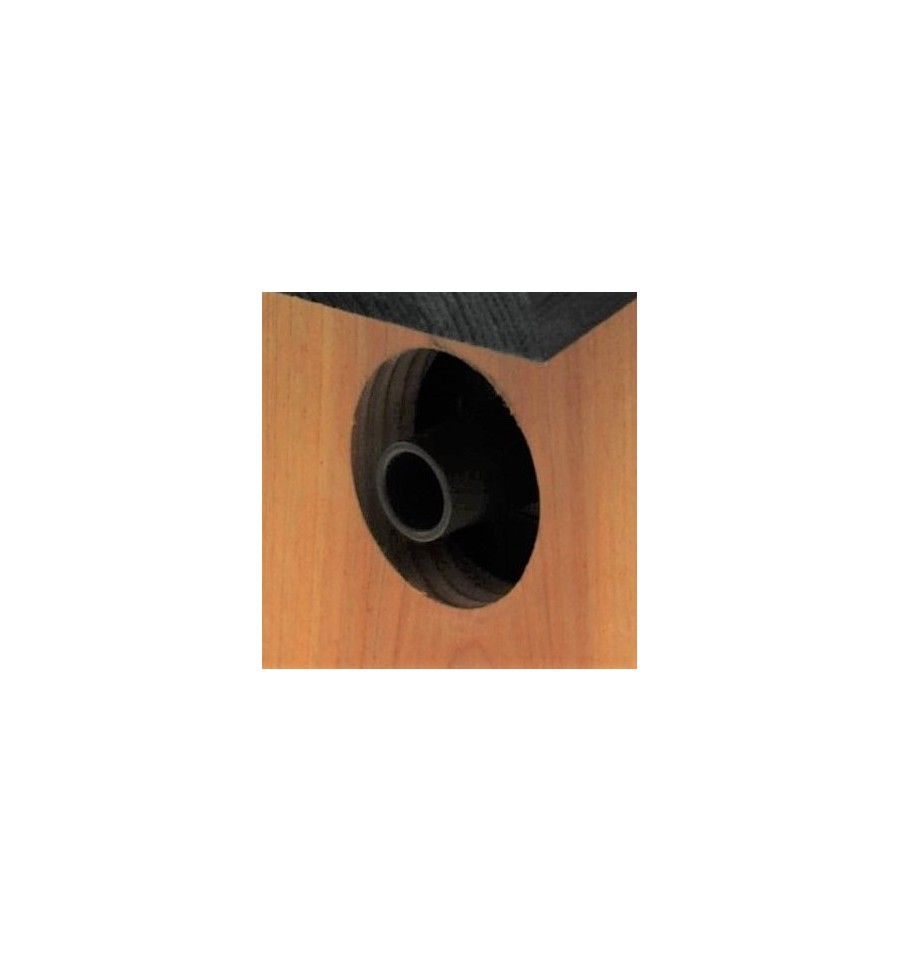

The PIR is supplied with 3 Lens Cap Settings which together with internal adjustments allow you to set the PIR to suit your application, these include:

• Pencil Beam Attachment: Provides a very narrow Beam to avoid small to medium ground animals.
• Medium Beam Attachment: Provides a narrow Beam to avoid most small to medium ground animals whilst detecting Vehicles more efficiently than the Pencil Beam.
• No attachment Fitted: Ideal when the detection of Vehicles is most important to you.

Installation Tip:

We recommend the PIR is fitted looking away from a rising Sun rather than towards it, if this is not possible then care should be taken when choosing the location and direction of the PIR, this basic principle is the same for most outdoor PIR's.

Operational Options:

This Wireless Driveway Alert has the unique feature of being able to use the PIR in two ways:

• 24 hour operation (for use in locations where all day detection is preferred).
• Night Time Operation (for use in locations where you only want a working detector during the hours of darkness).

This allows you to perhaps have some PIR's working throughout the day on a subtle chime from the Receiver, and other PIR's that only work when it is dark, which would trigger a louder Siren on the Receiver (ideal for protecting buildings like workshops etc).

You can use as many additional Receivers as needed for your application and up to 16 PIR's.
